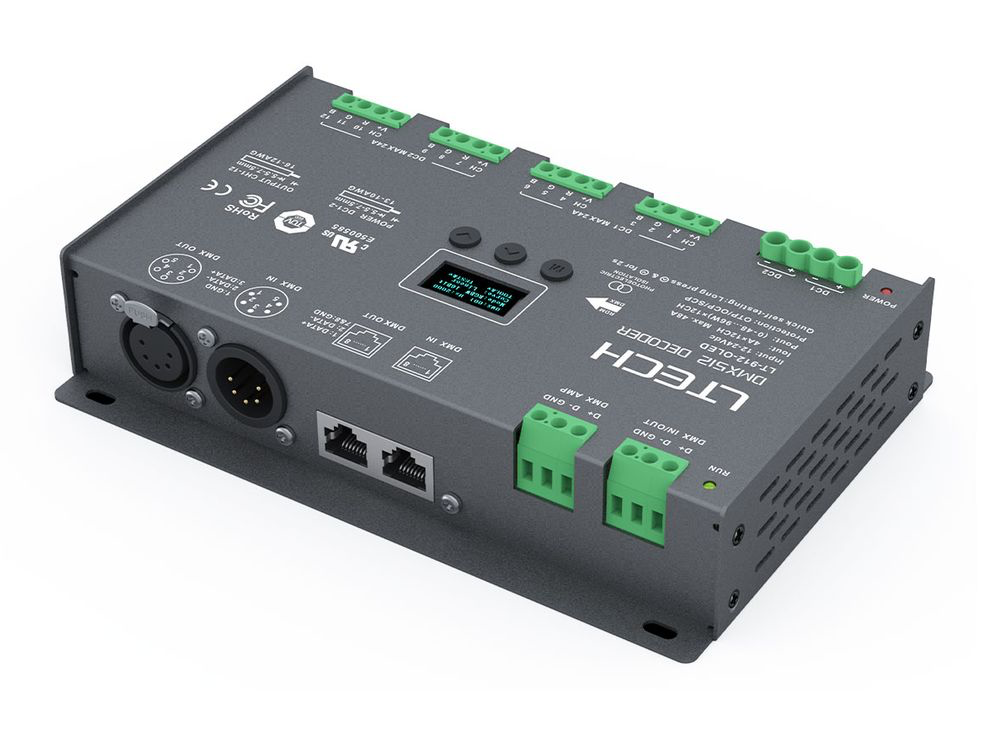

LT-912-OLED DMX/RDM 12-Channel LED Decoder
LT-912-OLED
Take your LED lighting control to the next level with the LTECH LT-912-OLED DMX/RDM Decoder. Designed for high-power, multi-channel constant-voltage LED applications, this advanced decoder combines 12-channel output, flexible lighting modes, and precise dimming control in one compact unit.
Download Our Data Sheet
High-Power LED Control with 12 Channels, OLED Configuration and 16-Bit Dimming.
Supporting single-colour dimming, colour temperature (CT), and RGB lighting configurations, the LT-912-OLED offers versatile control for professional LED installations. Its intuitive OLED screen and touch buttons simplify configuration, while DMX512 and RDM compatibility enable integration with professional lighting control systems.
With three DMX connection options, photoelectric isolation, selectable 8-bit or 16-bit resolution, and built-in protection functions, the LT-912-OLED is a powerful solution for installations that require flexible control across multiple LED channels.
12-Channel High-Power Control
Designed for multi-channel applications, the LT-912-OLED provides 12 output channels, each rated at up to 4A, with a maximum total output current of 48A.
Flexible Lighting Modes
Choose from three operating modes: single-colour dimming, colour temperature (CT), and RGB. This makes the decoder adaptable to a range of compatible constant-voltage LED installations.
8-Bit and 16-Bit Dimming
Select 8-bit resolution with 256 levels or 16-bit resolution with 65,536 levels for finer control where supported by the DMX master controller.
Why you'll love the LT-912-OLED
OLED Screen and Touch Controls
Configure the decoder directly through its built-in OLED display and touch buttons. Adjust the DMX address, operating mode, dimming curve, PWM frequency, and other available settings from the device.
Three DMX Interface Options
The LT-912-OLED includes 5-pin XLR, RJ45, and green terminal DMX/RDM connections. The green terminal also provides a signal-amplifier function, offering additional flexibility for compatible signal-network configurations.
DMX512 and RDM Remote Management
DMX512 provides lighting control, while RDM enables supported remote functions such as browsing and setting parameters, assigning DMX addresses, and identifying connected devices through compatible equipment.
PERFECT FOR:
- High-Power LED Installations - Control multiple compatible constant-voltage LED channels with a decoder rated for up to 48A total output current.
- Architectural and Feature Lighting - Create flexible lighting schemes for building details, coves, ceilings, and decorative features.
- Single-Colour LED Lighting - Adjust brightness across multiple compatible single-colour LED circuits.
- Tuneable White Lighting -
Use CT mode with compatible colour-temperature LED systems.
Ready to take control?
Give your DMX lighting system the precision, flexibility and feedback it deserves.
LT-912-OLED — professional DMX/RDM control in a compact package.
Add to your project today and bring your LED installation to life.
