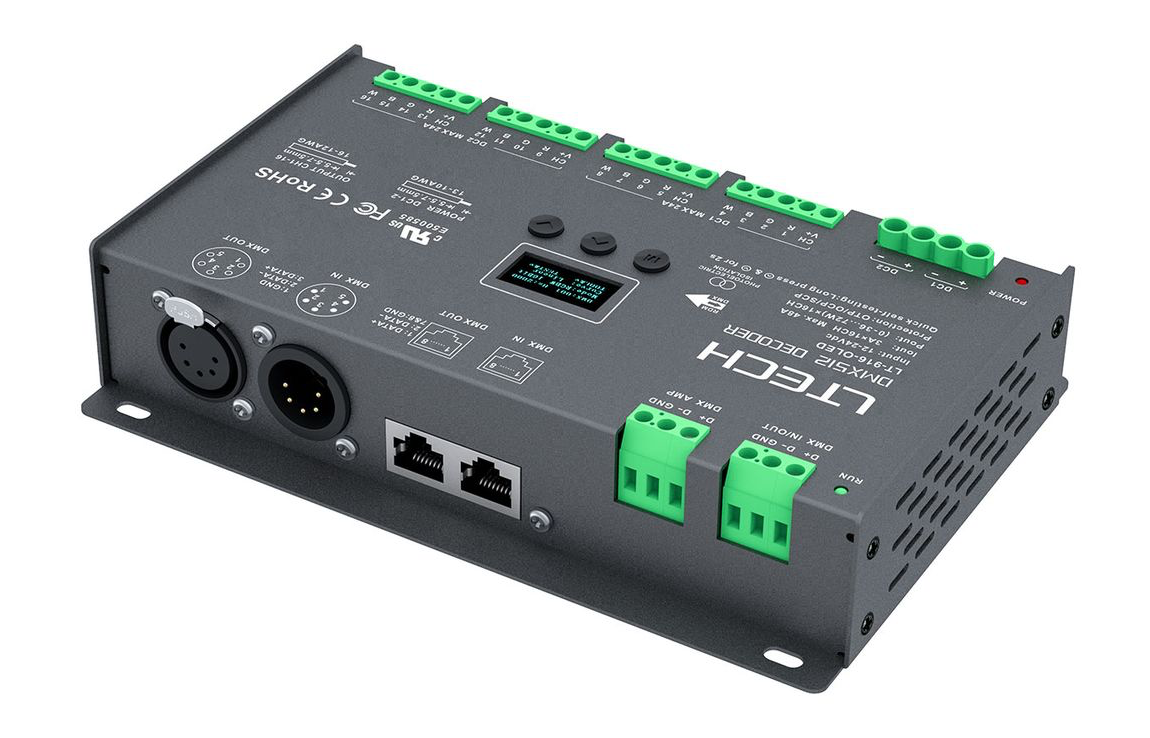

LTECH LT-916-OLED – 16-Channel DMX/RDM LED Decoder
LT-916-OLED
The LTECH LT-916-OLED is a high-power, 16-channel LED decoder designed for professional lighting systems that require flexible control and smooth dimming performance. Supporting DMX512 and RDM protocols, it combines an intuitive OLED screen and touch-button interface with multiple connection options and configurable dimming settings.
Download Our Data Sheet
Precise control. Real-time feedback. Built for serious LED lighting.
Meet the LT-820-5A, a powerful 16-bit DMX/RDM CV decoder designed to give you smooth, precise control over your LED lighting.
With its built-in OLED display, you can see what the decoder is doing in real time and adjust settings directly from the unit. No guessing, no complicated setup menus hidden away on a computer — just clear information when you need it.
Why you'll love the LT-916-OLED
16-Channel Control
Control up to 16 output channels from one decoder, helping simplify multi-channel lighting system design.
High-Power Output
Supports up to 3A per channel and a maximum total output current of 48A. The datasheet specifies a maximum output power of 1,152W, depending on the supply voltage and load configuration.
Four Operating Modes
Choose from single-colour dimming, colour-temperature (CT), RGB or RGBW control to suit the connected LED lighting.
Fine Dimming Adjustment
Select 8-bit resolution for 256 levels or 16-bit resolution for 65,536 levels, where supported by the master controller.
Configurable Dimming Curves
Adjust the dimming curve, with standard and linear options plus a configurable 0.1–9.9 range for specialised requirements.
OLED Display and Touch Controls
Set the DMX address, operating mode, PWM frequency and other parameters directly through the onboard interface.
PERFECT FOR:
- Architectural and commercial LED lighting
- Multi-channel single-colour lighting systems
- Tuneable white and colour-temperature control
- RGB and RGBW LED Installations
- Professional DMX-controlled lighting projects
- Installations requiring remote configuration through RDM
TECHNICAL INFORMATION:
Ready to take control?
Give your DMX lighting system the precision, flexibility and feedback it deserves.
LT-916-OLED — professional DMX/RDM control in a compact package.
Add to your project today and bring your LED installation to life.
