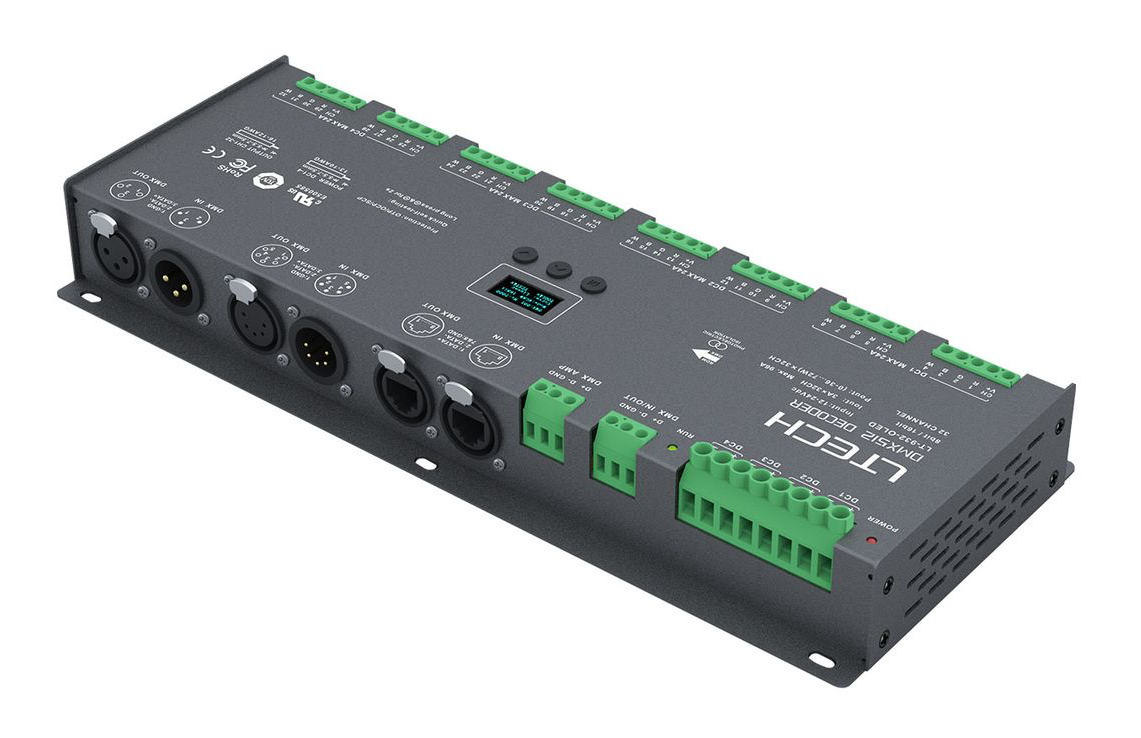

LTECH LT-932-OLED – 32-Channel DMX/RDM LED Decoder

LT-932-OLED


The LTECH LT-932-OLED is a professional 32-channel constant-voltage LED decoder designed for high-power, multi-channel lighting applications. Supporting DMX512 and RDM protocols, it combines flexible lighting control with an OLED display, touch-button operation and four types of DMX connection.



Download Our Data Sheet

​

High-capacity, precision control for complex LED lighting installations.

With a 12–24V DC input, up to 3A per channel and a stated maximum output power of 2,304W, the LT-932-OLED is built for installations requiring extensive channel control. Its selectable 8-bit or 16-bit resolution, configurable dimming curves and remote management capabilities provide flexibility for a wide range of professional lighting projects.


Why you'll love the LT-932-OLED

​

32-Channel LED Control

Manage up to 32 output channels from a single decoder, supporting complex multi-channel lighting designs.

​

High-Power Capability

Supports a maximum current of 3A per channel and 96A total. The datasheet specifies maximum output power of 2,304W, subject to supply voltage and load configuration.

​

Four Lighting Modes

Choose from single-colour dimming, colour-temperature (CT), RGB or RGBW operation to match the connected LED lighting.

​

Four DMX Connection Options

Choose from 3-pin XLR, 5-pin XLR, RJ45 or green terminal connections. The green terminal provides a signal-amplifier function, and the datasheet states that the interfaces include signal isolation.

​

Selectable 8-Bit or 16-Bit Resolution

Choose 8-bit control with 256 levels or 16-bit control with 65,536 levels, where supported by the master controller.

​

Configurable Dimming Curves

Choose standard, linear, LOG or a custom 0.1–9.9 dimming curve to suit the requirements of the lighting system.

PERFECT FOR:


  • Large-scale architectural and commercial LED lighting
  • Multi-channel single-colour dimming
  • Tunable-white and colour-temperature control
  • RGB and RGBW lighting installations
  • Professional DMX512 lighting control systems
  • Projects requiring RDM configuration and remote management
  • Lighting systems where firmware updates and flexible dimming settings are important


TECHNICAL INFORMATION

Model
LT-932-OLED
Decoder Type
Constant-voltage (CV) LED decoder
Input Signal
DMX512 / RDM
Input Voltage
12–24V DC
Output Channels
32
Maximum Current Per Channel
3A
Maximum Total Output Current
96A
Output Power
(0–36W...72W) × 32 channels; maximum 2,304W
Control Modes
Dimming, CT, RGB, RGBW
DMX Interfaces
3-pin XLR, 5-pin XLR, RJ45, green terminal
Dimming Resolution
8-bit (256 levels) / 16-bit (65,536 levels)
Dimming Curves
Standard, linear, LOG, custom 0.1–9.9
Photoelectric Isolation
Yes
Protection
Short circuit, overcurrent, overheat
Operating Temperature
-30°C to +65°C
Product Dimensions
300 × 122 × 39mm
Package Dimensions
313 × 127 × 41mm
Gross Weight
1,180g
Warranty
5 years from date of delivery, subject to terms
