LTECH LT-995-OLED – 5-Channel DMX/RDM LED Decoder

LT-995-OLED

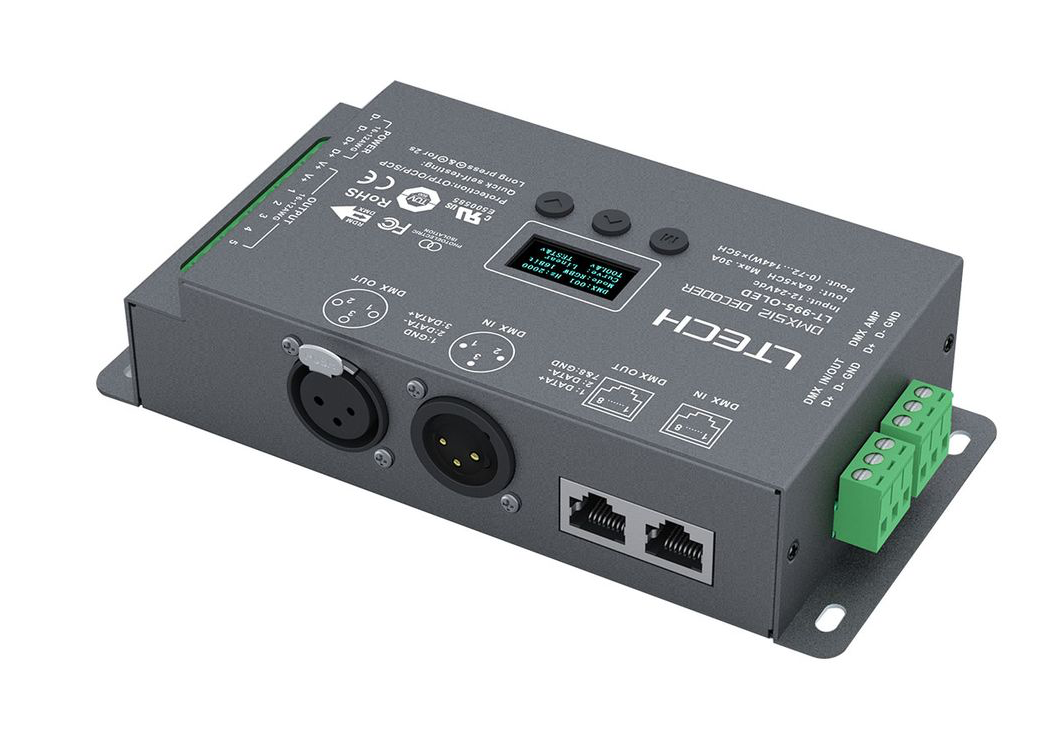

The LTECH LT-995-OLED is a five-channel constant-voltage LED decoder designed for DMX512 and RDM lighting control systems. Operating from a 12–24V DC supply, it supports up to 6A per channel and a maximum total output of 720W, depending on supply voltage and load conditions.



Download Our Data Sheet

​

Precise five-channel LED control with OLED operation, flexible colour modes and advanced dimming options.

With five selectable control modes—DIM, CT, RGB, RGBW —plus an onboard OLED display and touch-button controls, the LT-995-OLED offers flexible configuration for a range of multi-channel LED installations. Its 8-bit or 16-bit resolution options, adjustable dimming curves and smooth dimming enhancement help installers tailor the lighting response to the project.


Why you'll love the LT-995-OLED

​

Five-Channel Output

Control up to five LED output channels, with a maximum rated current of 6A per channel and 30A total.

​

Flexible Lighting Modes

Choose from DIM, CT, CT2, RGB, RGBW mode options through the decoder settings.

​

OLED Display and Touch Controls

View and adjust DMX addresses, operating modes, PWM frequency, grey level and dimming curves directly on the unit.

​

Adjustable Dimming Response

Select standard, linear, LOG or a custom dimming curve from 0.1 to 9.9. Smooth dimming enhancement is also available.

​

Built-In Protection

Short-circuit, overcurrent and over-temperature protection help safeguard the decoder. The datasheet states that it recovers automatically after protection events.

​

Three DMX/RDM Connection Options

Connect via 3-pin XLR, RJ45 or green terminal. The green terminal also provides a signal-amplifier function.

PERFECT FOR:


  • Architectural and decorative LED lighting
  • RGB, RGBW and RGBWY colour-changing installations
  • Tunable-white and colour-temperature control systems
  • DMX512-controlled commercial and hospitality lighting
  • Multi-channel LED projects requiring remote RDM configuration

TECHNICAL INFORMATION

Model
LT-995-OLED
Input Signal
DMX512 / RDM
Input Voltage
12–24V DC
Output Channels
5
Maximum Current
6A per channel; 30A total
Output Power
Up to 720W total, depending on voltage and load
Control Modes
DIM, CT, CT2, RGB, RGBW, RGBWY
Dimming Curves
Standard, Linear, LOG, Custom 0.1–9.9
Grey-level Resolution
8-bit (256 levels) / 16-bit (65,536 levels)
DMX/RDM Interfaces
3-pin XLR, RJ45, green terminal
Signal Isolation
Photoelectric isolation
Protection
Short circuit, overcurrent and over-temperature; automatic recovery
Display and Controls
OLED display with touch buttons
Additional Functions
Fast self-test, power-on state management, selectable PWM frequency and smooth dimming enhancement
Operating Temperature
-30°C to +65°C
Product Dimensions
169 × 80 × 39mm
Package Dimensions
182 × 91 × 41mm
Gross Weight
550g
Warranty
5 years
