MADRIX LUNA
MADRIX LUNA
The MADRIX LUNA reliably distributes DMX512 data over long or short distances using Ethernet network or USB. Its sync mode makes sure that lighting effects look their best on the LEDs.
Package Contents:
- 1x MADRIX LUNA
- 1x Power cord (IEC C13)
- 1x USB 2.0 cable (certified)
- 2x Rack-mount brackets (already mounted to the device)
- 1x Technical manual / quick start guide
Download Our Data Sheet
Reliable Ethernet-based DMX distribution for professional LED lighting systems.

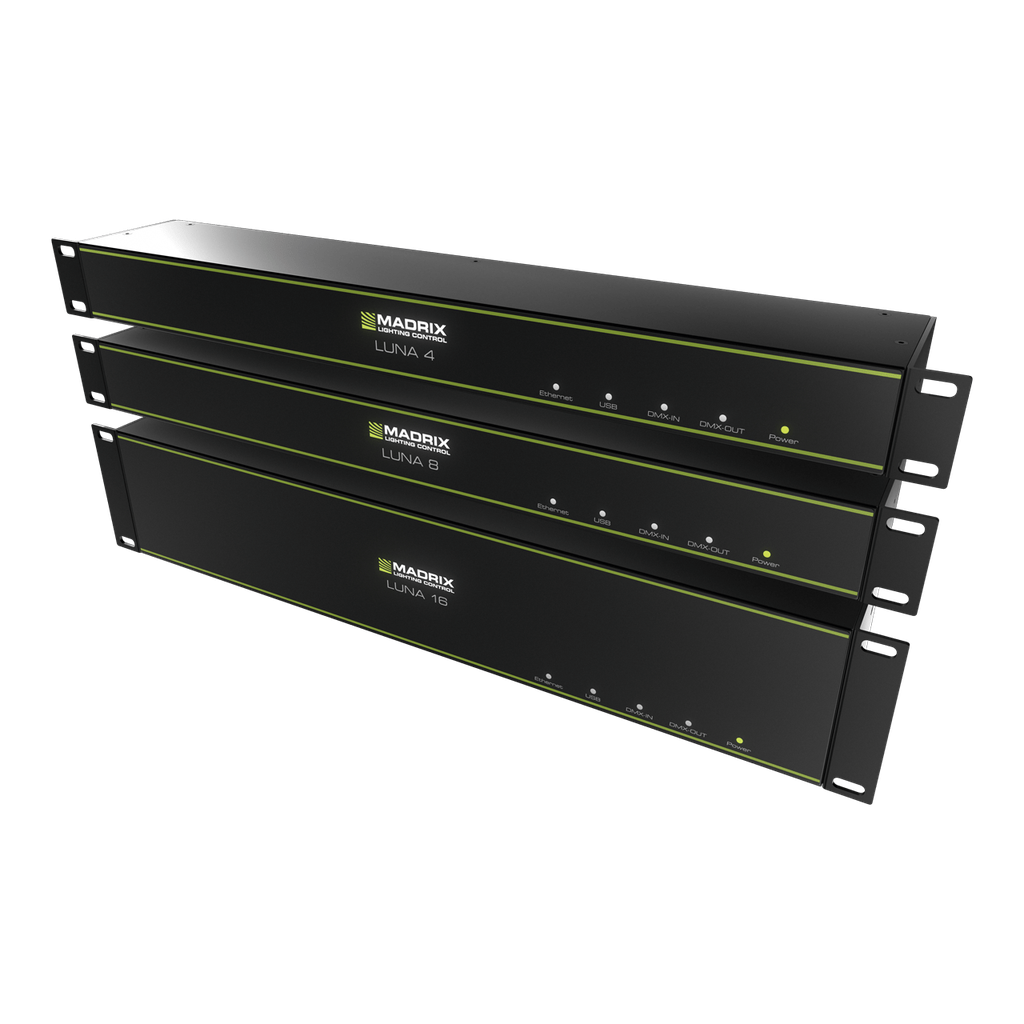

MADRIX LUNA converts Art-Net and Streaming ACN (sACN) network data into DMX512, helping simplify and decentralise cabling across lighting installations. Available in three versions—LUNA 4, LUNA 8 and LUNA 16—it provides 4, 8 or 16 DMX outputs, plus one DMX input, in a rack-mountable design.
Connect compatible lighting software or hardware controllers over Ethernet, or connect directly to MADRIX 5 via USB. With synchronisation support, built-in web configuration and HTP merging for two Ethernet sources, LUNA is designed for dependable operation in professional lighting projects.

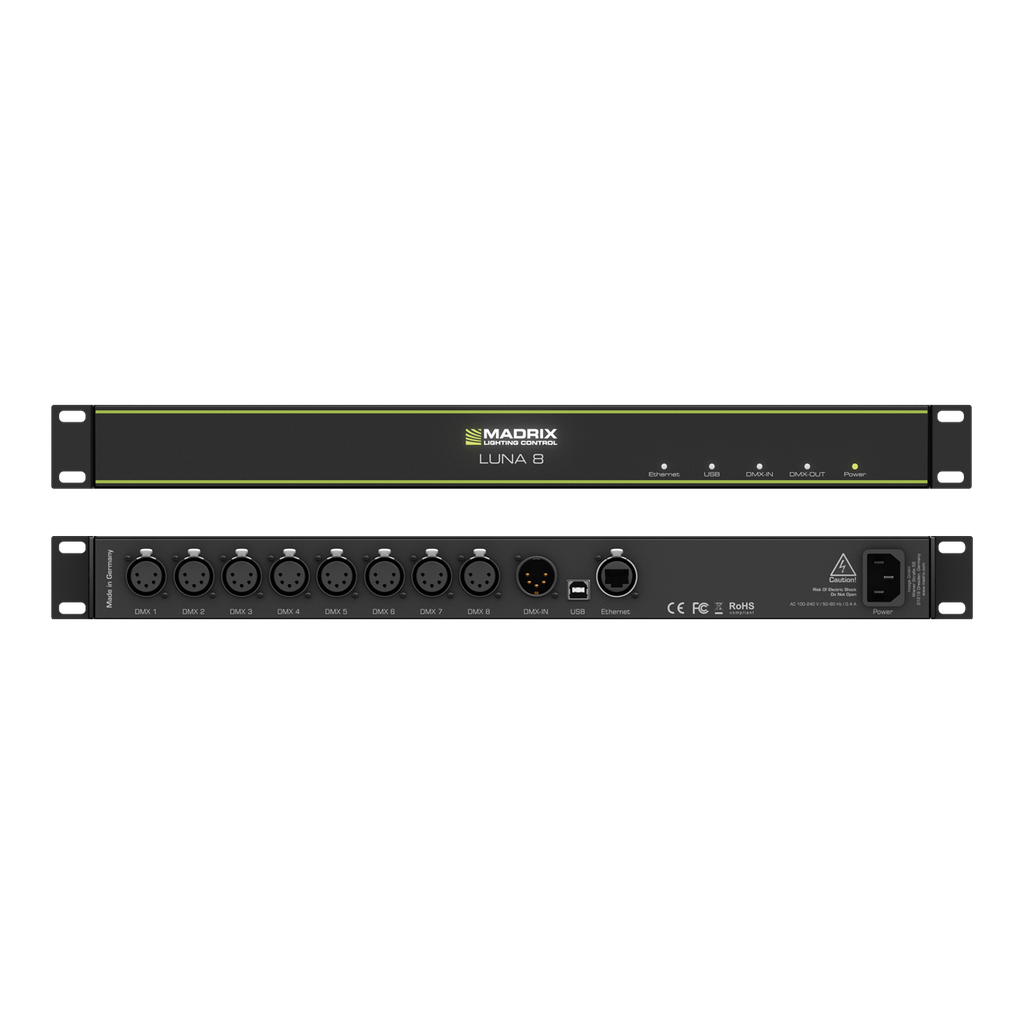

4, 8, or 16 XLR ports (5-pin, female) distribute the equal number of DMX universes per unit. 1 XLR port (5-pin, male) can be used for DMX input. Simply use several units at the same time for larger projects.
Art-Net or Streaming ACN data is directly converted to DMX512. Optimize and decentralize cabling to cover any distance to the device using Ethernet network.
The device is ready within seconds after startup. HTP merging is automatically available for two Ethernet sources. Its firmware is upgradable for future enhancements. Access and change specific device settings using the built-in web configuration page.
MADRIX LUNA offers powerful features, especially in combination with MADRIX 5. Take full advantage of pixel mapping and voxel mapping. The installation of the device is still quick and easy.
Devices are built 19″ x 1U or 19″ x 2U. They feature a fanless, noiseless, low-energy design, a durable metal case, and NEUTRIK plugs. 2 premounted brackets make rack mounting possible. 5 indicators quickly show the status of a device.
MADRIX 5 and MADRIX hardware allow you to fully synchronize Art-Net data for all output ports and even across multiple devices to get an optimal image on the LEDs without visual interruptions.d brackets make rack mounting possible. 5 indicators quickly show the status of a device.
MADRIX LUNA complies with the official protocol specifications and can be used as a regular node with your other consoles, controllers, or software solutions.
Product Information
MADRIX LUNA
The MADRIX LUNA reliably distributes DMX512 data over long or short distances using Ethernet network or USB. Its sync mode makes sure that lighting effects look their best on the LEDs.
Choose Your MADRIX LUNA
Select the version that matches the number of DMX output universes required by your installation: LUNA 4 for four outputs, LUNA 8 for eight outputs, or LUNA 16 for sixteen outputs.
For professional LED control, network-based DMX distribution and synchronised lighting applications, MADRIX LUNA provides a rack-mountable node with Ethernet, USB and DMX connectivity.
