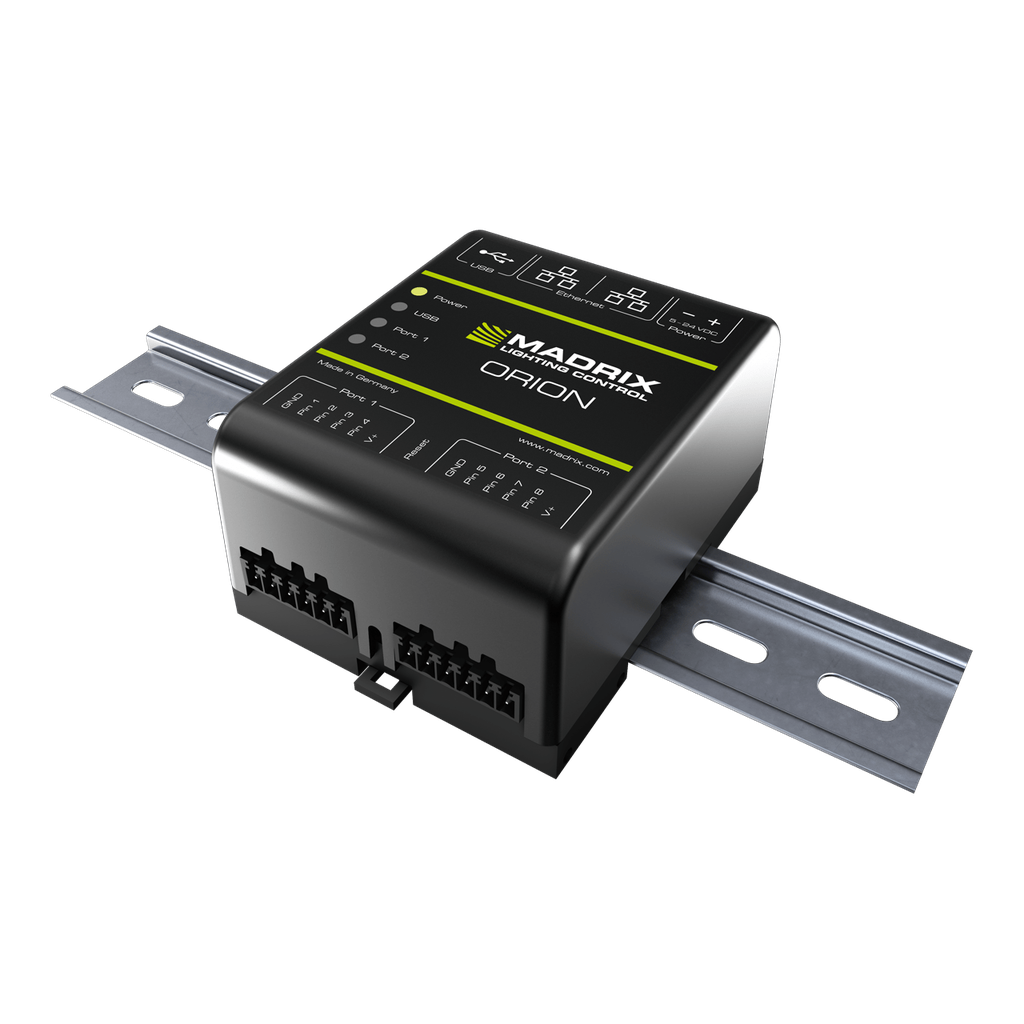

The MADRIX ORION is specifically designed as a general-purpose input device for analogue input and Ethernet-based output for remote control and interactivity.
Package Contents:
- 1x MADRIX ORION
- 1x Set of pluggable screw terminals (2x 6-pin and 1x 2-pin)
- 1x USB 2.0 cable (certified)
- 2x Wall-mount brackets
- 1x Technical manual / quick start guide
Download Our Data Sheet
Connect sensors, switches and triggers to interactive lighting projects.
MADRIX ORION is an input interface designed to convert analog signals into digital lighting-control data. It measures analog input signals from 0 V to 12 V and converts them into 8-bit or 16-bit digital DMX output signals. The device provides eight individual input pins that can be configured for different functions, enabling interactive lighting applications using compatible sensors, potentiometers, switches and triggers.
ORION sends data over Art-Net or Streaming ACN (sACN) to compatible lighting-control software or hardware, and can also connect to MADRIX 5 over USB. With two Ethernet ports, flexible 5–24 V DC power options and DIN-rail or wall mounting, it is designed for integration into interactive lighting systems.
Product Information
Easily convert any analog input signal ranging from 0 V – 12 V into an 8-bit or 16-bit digital DMX output signal. Sample incoming signals instantly and map all inputs individually to up to 8 or 16 DMX channels per device.
Directly connect to a wide range of compatible sensors, potentiometers, switches, and triggers. Easily create interactive projects using sensors for light, temperature, PIR, and many more.

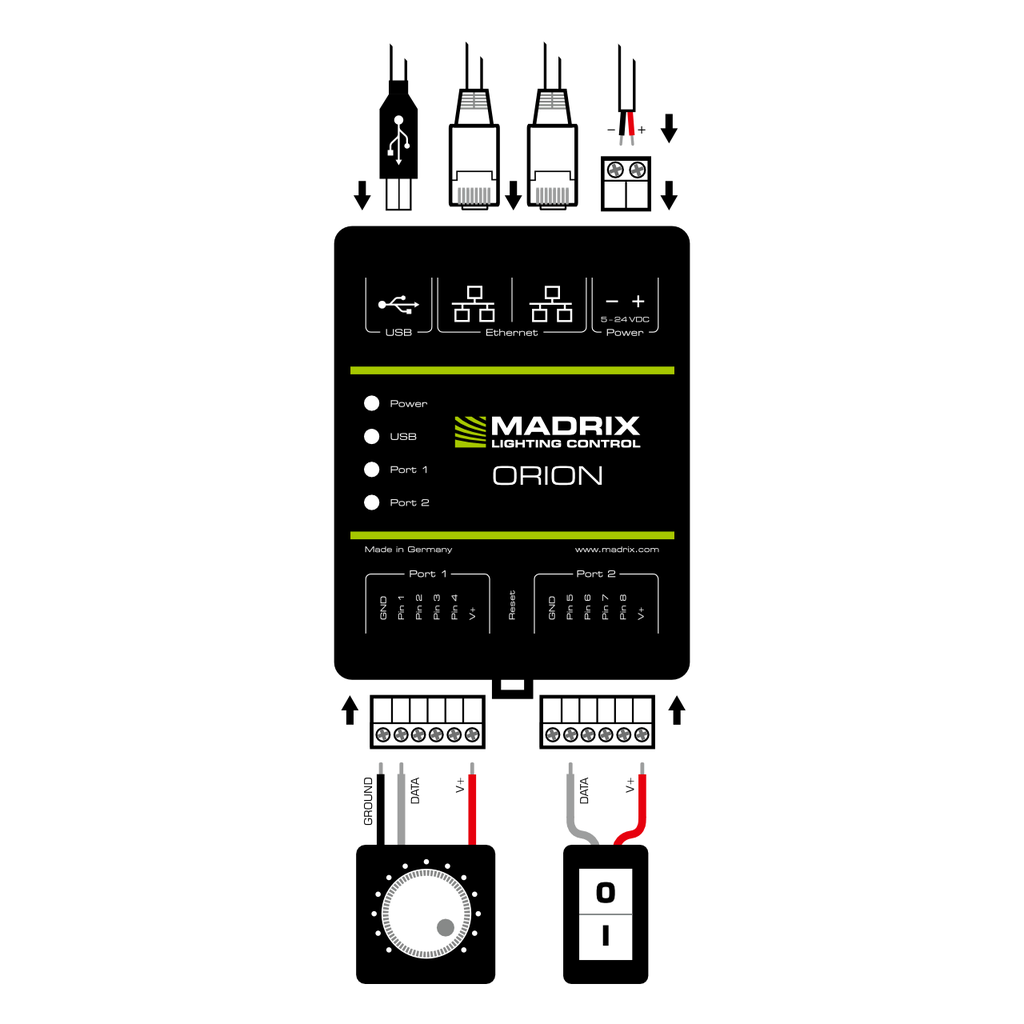

2 main 6-pin ports are available with 4 individual pins each as well as GND and V+. Flexibly supply 5 V – 24 V power over the 2-pin screw terminal.
Its non-conductive enclosure and standardized design for 35 mm top-hat rails make mounting quick, easy, and safe. 2 extra brackets are provided for optional wall mounting. 9 indicators quickly show the device status with the option to turn them off.
Send the output signal as Art-Net or Streaming ACN (E1.31) over long or short distances to any compatible software or hardware controller. In addition, simply connect to MADRIX 5 over USB.
Different input types allow data to be processed and parameterized differently for the output. Each input can be separately set as Analog-IN, Digital-IN, Counter, and other useful functions.
2 Ethernet ports allow for separate network connections as well as linearly daisy-chaining several devices together for better cable management.
MADRIX ORION
The MADRIX ORION is specifically designed as a general-purpose input device for analogue input and Ethernet-based output for remote control and interactivity.
Build Interactive Lighting with MADRIX ORION
Bring sensor-based and input-triggered lighting projects to life with a configurable eight-input interface. MADRIX ORION supports analogue signal conversion, network-based lighting control and flexible installation options in a compact DIN-rail or wall-mountable enclosure.
