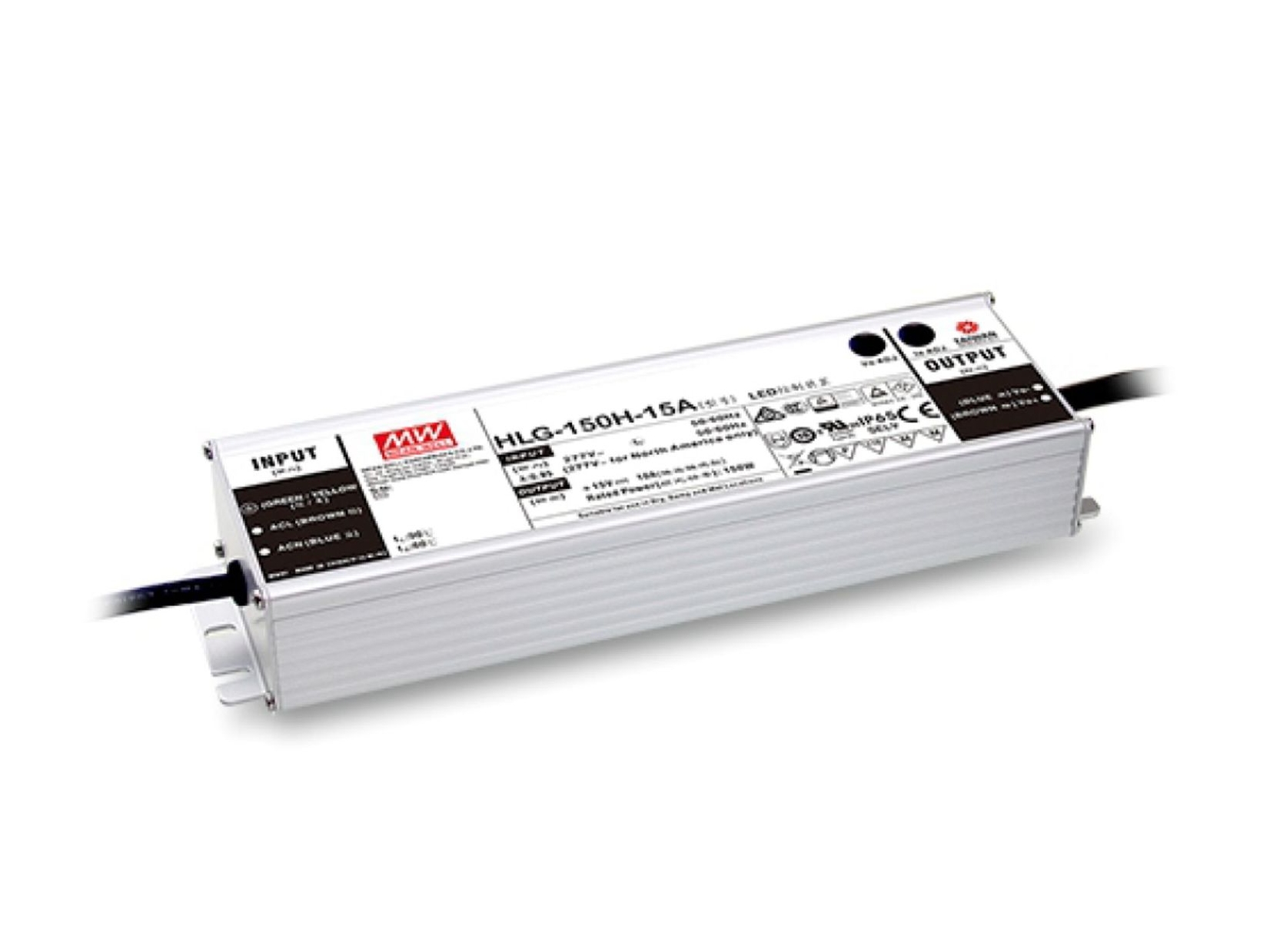

HLG-150H LED Driver

HLG-150H


The Mean Well HLG-150H LED Driver is a reliable and high-efficiency industrial power supply built for demanding LED lighting and electronic applications.

The HLG-150H- offers excellent protection against dust and moisture, while built-in safeguards against overload, short circuits, and overheating ensure safe and dependable long-term operation.



Download Our Data Sheet

​



More power. More flexibility. Built to keep your LEDs shining.


Looking for a robust, reliable power supply for a demanding LED lighting project? The MEAN WELL HLG-150H delivers up to 150W of power in a rugged, fanless package designed for both indoor and outdoor lighting applications.

With constant voltage and constant current operation, multiple output voltage options and flexible dimming capabilities, the HLG-150H gives you the power and control to get your lighting system working exactly the way you want it.

With 150W of rated power, the HLG-150H is ready for larger and more demanding LED lighting installations.

The series is available with output voltages from 12V through to 54V, giving you plenty of options when matching the driver to your LED system.

Its constant voltage + constant current design allows it to operate in either constant-current mode for direct LED driving or constant-voltage mode when used with an additional DC/DC driver.

The HLG-150H has been designed with the real world in mind.

Its rugged metal housing and IP67/IP65 protection options make it suitable for indoor and outdoor applications, while the fanless design provides cooling without the need for a mechanical fan.

The series is specified to operate with a case temperature from -40°C to +90°C, making it a strong choice for installations where conditions can get demanding.

Want more control over your lighting? Selected HLG-150H versions offer 3-in-1 dimming, giving you three different ways to adjust the output current:

  • 1–10V DC
  • 10V PWM
  • Resistance

The HLG-150H achieves efficiency of up to 94%, helping make the most of the power being supplied to your lighting system.

And because the design is fanless, there’s no cooling fan producing noise or adding another moving component to the system.

LED installations don't always operate under perfect conditions. The HLG-150H includes protection features designed to help safeguard the driver and your lighting system, including:

  • Short-circuit protection
  • Over-current protection
  • Over-voltage protection
  • Over-temperature protection

The HLG-150H has a specified typical lifetime of more than 62,000 hours under the conditions stated in the datasheet, along with a 7-year warranty.

So whether you're installing it into a new lighting system or replacing an existing driver, it's designed with long-term reliability in mind.

Specifications At A Glance

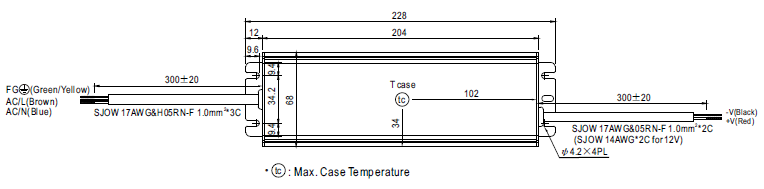

Dimensions



The bottom Line


150W of serious LED power, without making things complicated.

The MEAN WELL HLG-150H combines high efficiency, rugged construction, flexible dimming and a wide operating range in one dependable LED driver.

For larger LED installations where reliability and flexibility matter, the HLG-150H is a powerful choice.

Available in multiple output voltages and configuration options to suit your application.
