HLG-480H LED Driver
HLG-480H

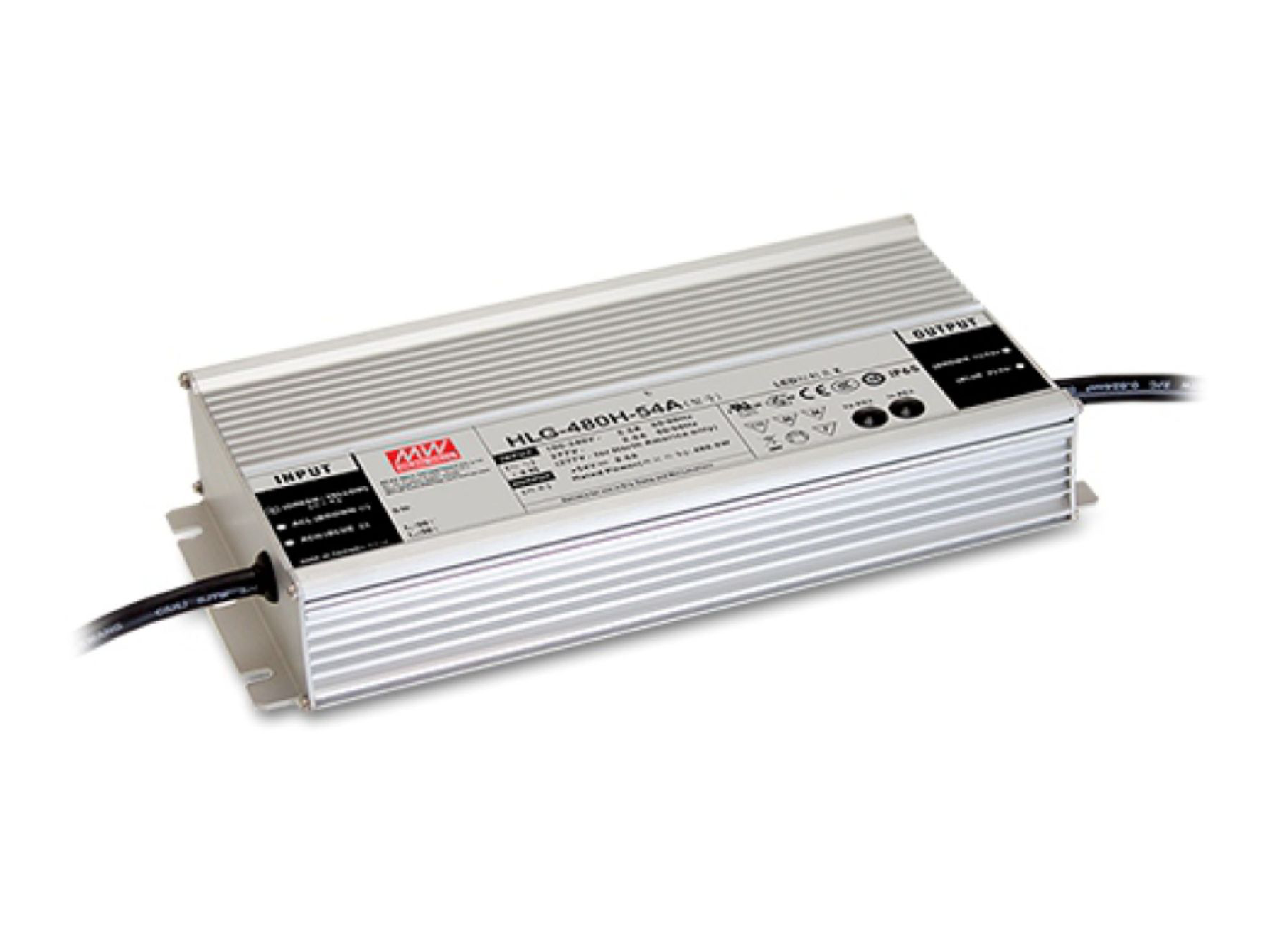

The Mean Well HLG-480H LED Driver is a powerful industrial-grade power supply designed for demanding LED lighting, signage, and automation applications.
Built with a rugged IP65/IP67-rated metal housing, the HLG-480H is suitable for both indoor and outdoor environments, while comprehensive protection against overload, short circuits, overvoltage, and overheating ensures safe and reliable long-term operation.
Download Our Data Sheet
More Power. More Flexibility. Built for Demanding LED Applications.
When your LED installation needs serious power without sacrificing reliability, the MEAN WELL HLG-480H is ready to deliver. With up to 480W of output power, dual-mode constant voltage and constant current operation, and a rugged fanless design, it’s built to handle demanding indoor and outdoor lighting applications.
With output options from 24V to 54V, flexible dimming and timer options, IP65/IP67 protection and a wide operating temperature range, the HLG-480H gives you the power and flexibility to build lighting systems that perform reliably — even in challenging environments.
Need serious headroom for your LED installation? The HLG-480H delivers up to 480W, with rated output voltages ranging from 24V to 54V.
Its dual-mode design allows it to operate in either constant current mode for direct LED driving or constant voltage mode, giving you greater flexibility when designing your lighting system.
The HLG-480H is designed to keep performing when conditions get demanding.
Its rugged metal housing, IP67/IP65 protection, and fanless construction make it suitable for both indoor and outdoor installations. It can operate with a case temperature from -40°C to +90°C under free-air convection, helping it handle challenging operating environments.
Want more control over your lighting? Selected HLG-480H versions offer 3-in-1 dimming, supporting:
- 0–10V DC
- 10V PWM
- Resistance
Selected versions also feature built-in potentiometers for adjusting output voltage and current.
The HLG-480H combines high output power with impressive efficiency, reaching up to 95.5% efficiency in field applications.
And because there's no fan inside, there's no fan noise or moving cooling parts to worry about. Heat is managed through the driver's rugged design and free-air convection.
The HLG-480H comes equipped with built-in protection features designed to help safeguard both the driver and connected LED system.
Protection includes:
- Over-current protection
- Over-voltage protection
- Over-temperature protection
- Short-circuit protection
The driver uses constant-current limiting for over-current and short-circuit conditions, with automatic recovery after the fault condition is removed. Over-voltage and over-temperature protection shut down the output and require re-powering to recover.
The HLG-100H accepts a wide 90–305VAC input, giving it the flexibility to work across a broad range of mains supplies.
It also incorporates active PFC (Power Factor Correction) and achieves a typical power factor of ≥0.95 at 230VAC at full load.
Specifications At A Glance

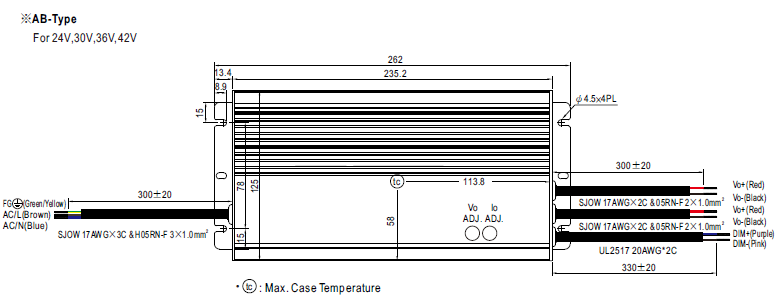

Dimensions
Tough. Efficient. Flexible. Built for LED lighting.
For customers who want to get into the numbers, the HLG-480H is available in multiple output configurations from 24V to 24V, with rated currents ranging from 8.9A to 20A, depending on model.
The HLG-480H in a nutshell: serious 480W LED power, rugged metal construction, fanless operation, flexible dimming and timer options, wide input voltage and dependable protection — all wrapped up in the proven HLG format.
