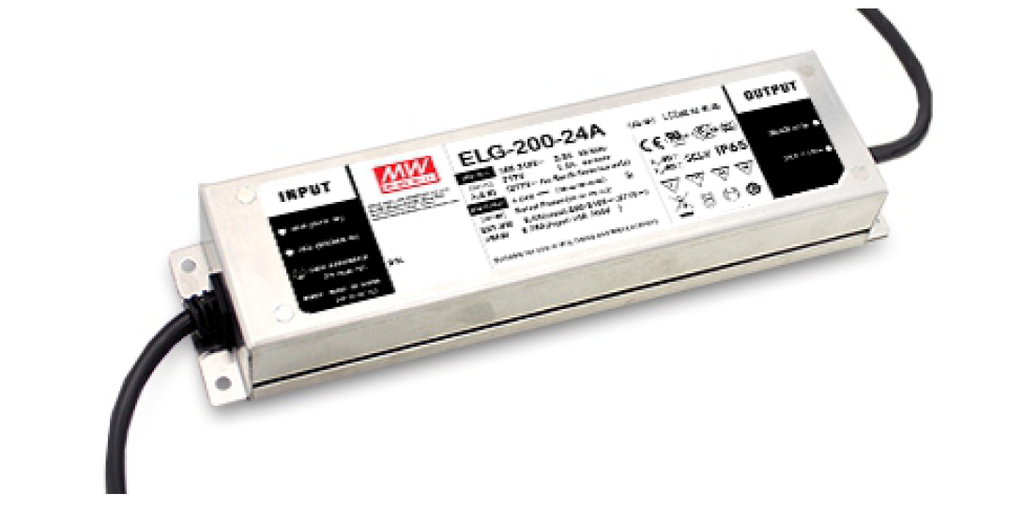

ELG-200 LED Driver
ELG-200
The Mean Well ELG-200 Driver is a high-performance LED power supply designed for demanding indoor and outdoor lighting applications.
Ideal for architectural, commercial, and exterior lighting projects, the ELG-200 offers dependable performance in professional LED installations.
Download Our Data Sheet
More power. More flexibility. Built for reliable LED lighting.
When your LED installation needs more power without compromising on flexibility, the MEAN WELL ELG-200 is ready to deliver. With up to 200W of output power, dual-mode constant voltage and constant current operation, and a rugged fanless design, it’s built for demanding LED lighting applications.
With output options from 12V to 54V, flexible dimming and control options, IP65/IP67 protection and a wide operating temperature range, the ELG-200 gives you plenty of power while keeping the installation practical and reliable.
Need serious power for your LED installation? The ELG-200 series delivers up to 200W, with models available in 12V, 24V, 36V, 42V, 48V and 54V versions.
Its dual-mode design allows it to operate in either constant current mode for direct LED driving or constant voltage mode, giving you flexibility when matching the driver to your LED system.
Depending on the model, rated output power ranges from 144W to approximately 200W, with rated output currents ranging from 3.72A to 16A.
Don't let the power rating fool you — the ELG-200 is designed to keep performing when conditions get demanding.
Its rugged metal housing, IP67/IP65 protection and fanless construction make it suitable for both indoor and outdoor installations. The series can operate with a case temperature from -40°C to +90°C under free-air convection, helping it cope with challenging environments.
Want more control over your lighting? Selected ELG-200 versions offer 3-in-1 dimming, supporting:
- 0–10V DC
- 10V PWM
- Resistance
Selected A/AB-Type versions also allow the output voltage and current to be adjusted using a built-in potentiometer, giving you another way to fine-tune the driver to your LED system.
The 3-in-1 dimming function also supports dim-to-off, allowing the output current to drop to 0% under the specified dimming conditions.
The ELG-200 can do more than simply turn the lights on.
Selected versions support DALI control, while Dxx-Type versions offer Smart Timer dimming, providing adaptive dimming profiles over up to 14 consecutive hours.
Smart Timer profiles are designed around common applications, including residential, street and tunnel lighting. This allows the LED output to automatically change throughout the operating period without needing a separate dimming controller.
The ELG-200 keeps things efficient, reaching up to 93% efficiency in field applications.
And because there's no fan inside, there are no moving cooling parts to worry about. Heat is managed through the driver's rugged design and free-air convection.
The series also features built-in active power-factor correction, helping support efficient operation across its wide input range.
LED installations are often expected to run for years, so reliability matters.
The ELG-200 has a typical life expectancy of more than 50,000 hours when the specified case-temperature conditions are met, and comes with a 5-year warranty.
Specifications At A Glance

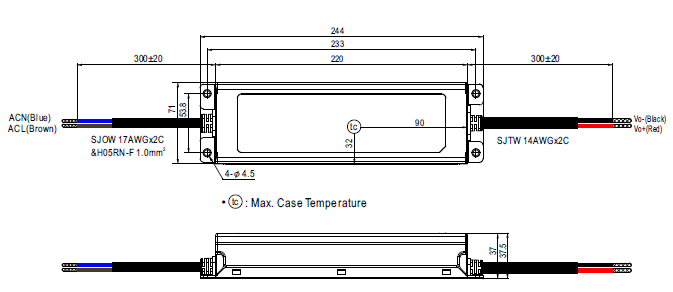

Dimensions
Tough. Efficient. Flexible. Built for LED lighting.
For customers who want to get into the numbers, the ELG-200 series is available in 12V, 24V, 36V, 42V, 48V and 54V output versions.
Depending on the model, rated output power ranges from 144W to approximately 200W, with rated currents from 3.72A up to 16A.
The driver measures approximately 244 × 71 × 37.5mm, giving you a substantial amount of LED power in a relatively compact metal enclosure.
The ELG-200 in a nutshell: powerful 144–200W LED output, rugged metal construction, fanless operation, flexible 3-in-1 dimming, Smart Timer and DALI options, wide input voltage and dependable protection — all in a compact ELG package.
