RSP-100 LED Driver

RSP-100

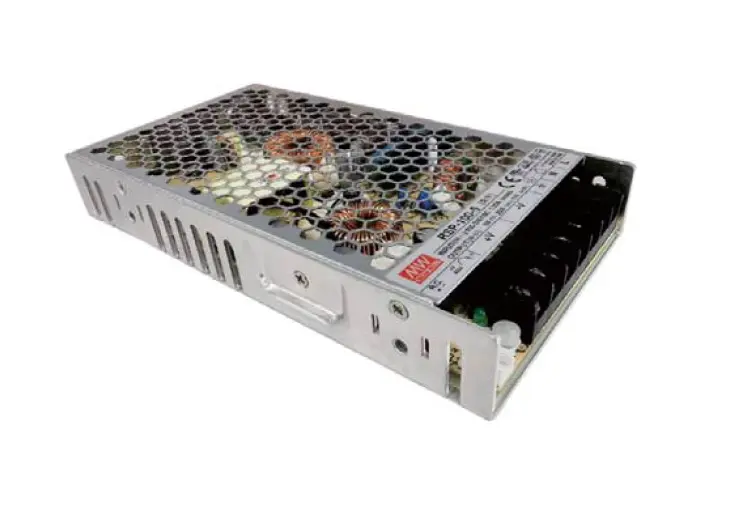

The Mean Well RSP-100 Power Supply is a compact and efficient enclosed switching power supply designed for industrial, commercial, and electronic applications.

The RSP-100 provides safe and dependable long-term operation for LED systems, control equipment, and custom electronic projects.



Download Our Data Sheet

​

​

Compact power. High efficiency. Built for dependable performance.

When you need reliable 100W power in a compact package, the MEAN WELL RSP-100 delivers. This single-output AC/DC power supply combines active power-factor correction, adjustable output voltage and a slim 30mm-high design, making it an excellent choice for applications where dependable power and efficient use of space matter.

With output options from 3.3V to 48V, a wide 85–264VAC input range, remote ON/OFF control and built-in protection, the RSP-100 gives system designers plenty of flexibility without taking up unnecessary space.

Specifications At A Glance


Key Specifications
Output Power up to 100W
Output Voltage 3.3V / 5V / 7.5V / 12V / 13.5V / 15V / 24V / 27V / 48V
Input 85–264VAC / 120–370VDC
Efficiency up to 88%
Power Factor >0.98 at 115VAC / >0.93 at 230VAC
Operating Temperature -30°C to +70°C
Dimensions approximately 179 × 99 × 30mm
Remote ON/OFF available
Protection overload, over-voltage and over-temperature





The RSP-100 series provides up to 100W of output power, with a wide selection of output voltages:

  • 3.3V
  • 5V
  • 7.5V
  • 12V
  • 13.5V
  • 15V
  • 24V
  • 27V
  • 48V

Depending on the model, rated output power ranges from 66W to 102.6W, with rated currents from 2.1A up to 20A.

Space can be just as important as power.

The RSP-100 measures approximately 179 × 99 × 30mm, giving you a compact, low-profile power supply that's easy to integrate into equipment where installation space is limited.

Its compact enclosure makes the RSP-100 a practical choice for control equipment, industrial electronics and other systems where a full-size power supply would be unnecessarily bulky.

Need to fine-tune the output? The RSP-100 provides an adjustable output voltage, with the available adjustment range depending on the model.

That means you can make small output-voltage adjustments to better match the requirements of your connected equipment rather than being restricted to a single fixed output value.

Efficiency varies by output model, reaching up to 88% on the specified versions. The RSP-100 also incorporates power-factor correction, with typical PF performance of >0.93 at 230VAC and >0.98 at 115VAC at full load.

The result is a power supply designed to make good use of incoming power while maintaining a compact form factor.

The RSP-100 also supports remote ON/OFF control, giving system designers the option to control the power supply externally rather than relying solely on the mains input.

The remote-control input is provided through the optional CN1 connector.

The RSP-100 includes built-in protection features designed to help protect both the power supply and your connected equipment.

Protection includes:

  • Overload protection
  • Over-voltage protection
  • Over-temperature protection

Overload protection uses constant-current limiting and automatically recovers once the fault condition is removed. Over-voltage protection shuts down the output and requires the unit to be re-powered, while over-temperature protection shuts down the output and automatically recovers once the temperature falls back within the specified range.

Ready for a wide range of applications


The RSP-100's combination of compact dimensions, adjustable output, remote control and multiple voltage options makes it a versatile choice for a wide variety of electronic and industrial equipment.

Its single-output design is particularly useful where you need a straightforward, dependable DC power source without the complexity of a multi-output supply.
