RSP-150 LED Driver
RSP-150

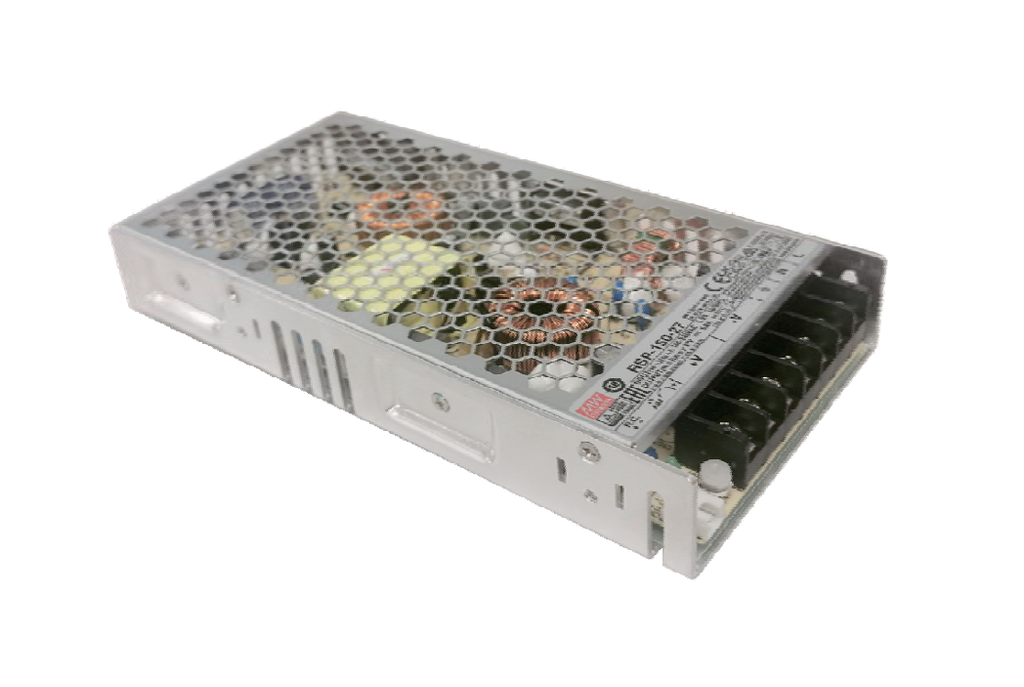

The Mean Well RSP-150 Power Supply is a compact and efficient industrial-grade power supply designed for reliable performance in a wide range of electronic and automation applications.
Built-in protections against overload, overvoltage, and short circuits ensure safe and dependable long-term operation, making it an ideal choice for LED systems, control equipment, and custom electronic projects.
Download Our Data Sheet
More power. More flexibility. Built for dependable performance.
When you need reliable power with a little more headroom, the MEAN WELL RSP-150 delivers. This single-output AC/DC power supply provides up to 150W of output power, combines active power-factor correction with a compact design, and gives you a wide choice of output voltages.
With output options from 3.3V to 48V, adjustable output voltage, remote ON/OFF control and built-in protection, the RSP-150 is designed to give system builders dependable power without taking up unnecessary space.
Specifications At A Glance
The RSP-150 series provides up to 150W of output power, with a wide selection of output voltages:
- 3.3V
- 5V
- 7.5V
- 12V
- 13.5V
- 15V
- 24V
- 27V
- 48V
Depending on the model, rated output power ranges from 99W to 153.6W, with rated currents from 3.2A up to 30A.
That gives you plenty of flexibility when choosing the right voltage and current combination for your equipment.
Need more power without a much bigger enclosure?
The RSP-150 measures approximately 199 × 99 × 30mm, giving you a slim, low-profile power supply that's easy to integrate into equipment where space is at a premium.
The compact 30mm-high design makes it a practical option for control systems, industrial equipment and other electronic applications where every millimetre counts.
The RSP-150 doesn't lock you into one fixed output setting.
Each model provides a specified output-voltage adjustment range, allowing you to fine-tune the DC output to better match your system requirements.
Output voltage adjustment ranges from approximately ±10% to ±10% depending on model, with the exact adjustment range varying according to the selected output voltage.
Need to control the power supply from your system?
The RSP-150 supports remote ON/OFF control through the optional CN1 connector, allowing the power supply to be switched electronically without disconnecting the AC input.
The control input uses 0–0.8VDC for power ON and 4–10VDC for power OFF.
The RSP-150 includes built-in protection features designed to help protect both the power supply and connected equipment.
Protection includes:
- Overload protection
- Over-voltage protection
- Over-temperature protection
Overload protection uses constant-current limiting and automatically recovers once the fault condition is removed.
Over-temperature protection shuts down the output and automatically recovers once the temperature returns to a suitable level, while over-voltage protection shuts down the output and requires the unit to be re-powered.
The RSP-150 combines efficient power conversion with active power-factor correction (PFC).
Efficiency varies by model, reaching up to 90%, while typical power factor is >0.98 at 115VAC and >0.93 at 230VAC at full load.
That makes the RSP-150 a practical choice when you want dependable power delivery while keeping energy use under control.
Tough. Efficient. Flexible. Built for LED lighting.
The MEAN WELL RSP-150 is a great choice when you need dependable power, plenty of configuration options and a compact footprint. With up to 150W of output power, multiple voltage options from 3.3V to 48V, adjustable output, active PFC and remote ON/OFF control, it offers the flexibility to suit a wide range of equipment and system designs. Add in its built-in protection, wide input range and strong long-term reliability, and the RSP-150 delivers a practical combination of power, flexibility and dependable performance in a slim, space-saving package.
