RSP-320 LED Driver
RSP-320

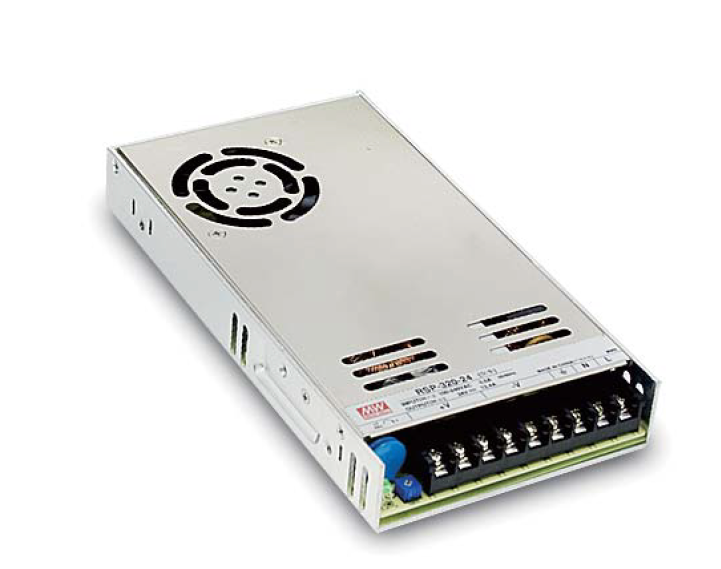

The Mean Well RSP-320-24 Power Supply is a high-performance industrial power supply engineered for demanding automation, LED lighting, and electronic applications.
The RSP-320-24 provides safe, dependable long-term performance for a wide range of commercial and industrial systems.
Download Our Data Sheet
Serious power. Flexible output. Built for dependable performance.
When your equipment needs a serious power boost without stepping up to an oversized power supply, the MEAN WELL RSP-320 is ready to deliver. This 320W single-output AC/DC power supply combines active power-factor correction, adjustable output voltage and a wide range of output options, giving you plenty of flexibility for demanding system designs.
With output options from 2.5V to 48V, a wide 88–264VAC input range, built-in protection and a compact 30mm-high design, the RSP-320 packs a lot of power into a surprisingly practical package.
Specifications at a Glance
Need some serious power behind your system? The RSP-320 delivers up to 320W, with a wide choice of output voltages:
- 2.5V
- 3.3V
- 5V
- 7.5V
- 12V
- 13.5V
- 15V
- 24V
- 27V
- 36V
- 48V
Depending on the model, rated output power ranges from 150W up to around 321.6W, with rated currents reaching as high as 60A.
320W of power doesn't have to mean a huge enclosure.
The RSP-320 measures approximately 215 × 115 × 30mm, giving you a slim, low-profile design that's easy to integrate into equipment where space matters.
At just 30mm high, it's a practical choice when you need plenty of power but don't want your power supply taking over the whole enclosure.
Need to fine-tune the output? The RSP-320 features adjustable output voltage, with the available adjustment range depending on the selected model.
This gives you the flexibility to fine-tune the supply to better match your equipment rather than being restricted to one fixed output value.
When you're dealing with higher power, built-in protection becomes even more important.
The RSP-320 includes protection features designed to help safeguard both the power supply and your connected equipment:
- Overload protection
- Over-voltage protection
- Over-temperature protection
Overload protection operates in hiccup mode and automatically recovers once the fault condition is removed.
Over-voltage protection shuts down the output and requires the unit to be re-powered, while over-temperature protection shuts down the output and automatically recovers once the temperature returns to a suitable level.
The RSP-320 is designed to operate across an ambient temperature range of -30°C to +70°C, with load derating required depending on operating conditions.
It also supports 20–90% RH non-condensing operating humidity, while the specified storage range extends from -40°C to +85°C.
For higher-altitude installations, the datasheet also specifies operation up to 5,000 metres, with additional temperature derating above 2,000 metres.
When your equipment needs to keep running, reliability matters.
The RSP-320 has a specified minimum MTBF of 1,826.4K hours according to Telcordia SR-332 and 192.9K hours according to MIL-HDBK-217F at 25°C.
That's a power supply designed with long-term operation in mind.
Ready for a wide range of applications
The RSP-320's combination of high output power, multiple voltage options, adjustable output and compact dimensions makes it a versatile choice for a wide range of electronic, industrial and equipment power applications.
Its single-output design keeps things straightforward when you need one powerful and dependable DC power source without the complexity of a multi-output supply.
