HDR-30 LED Driver
HDR-30
The Mean Well HDR-30-12 Power Supply is a compact and efficient DIN rail-mounted power supply designed for industrial automation, smart building systems, and control panel applications.
Built with protection against overload, overvoltage, and short circuits, the HDR-30-12 provides safe and dependable long-term operation for professional electrical and electronic installations
Download Our Data Sheet
Ultra-slim power. Easy DIN-rail mounting. Built for dependable performance.
Their early days were spent playing small gigs at local clubs, where they rapidly gained a reputation for their high-energy performances and innovative sound. As they honed their craft, their fanbase grew, fueled by word-of-mouth buzz and their undeniable chemistry on stage.
With each new release, Nova Pulse has continued to evolve, experimenting with different genres while staying true to their unique style. Their relentless drive and commitment to making authentic, powerful music have brought them to where they are today—a band on the brink of rock stardom.
Specifications At A Glance
The HDR-30 series offers several output options to suit different system requirements:
- 5V / 3A — 15W
- 12V / 2A — 24W
- 15V / 2A — 30W
- 24V / 1.5A — 36W
- 48V / 0.75A — 36W
The series therefore covers everything from compact 15W applications through to models delivering around 36W, while retaining the same ultra-slim DIN-rail format.
The HDR-30 is all about making the most of your available cabinet space.

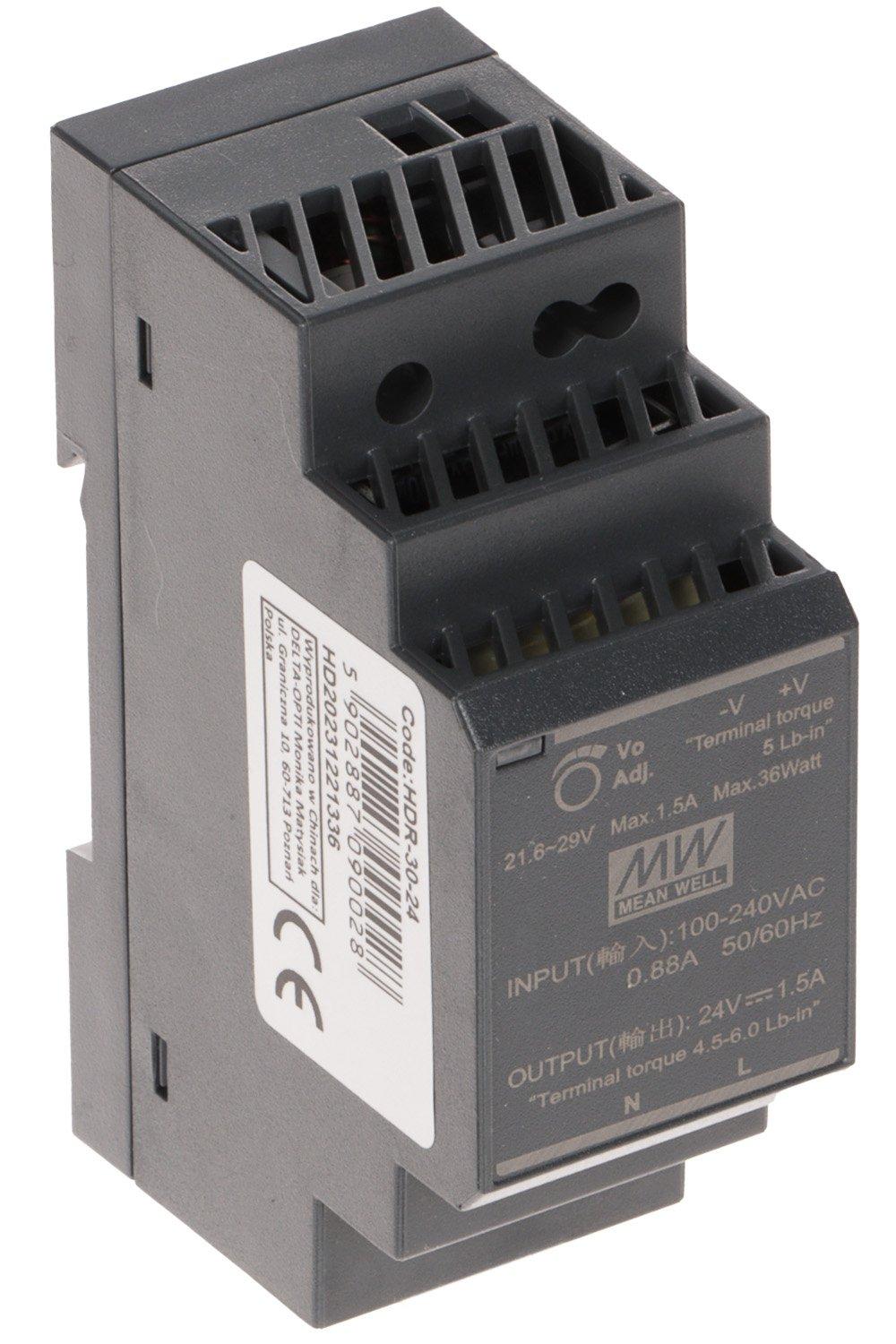

Measuring just 35 × 90 × 54.5mm, its ultra-slim housing is designed for TS35/7.5 or TS35/15 DIN-rail mounting, making installation quick and straightforward.
In other words: plenty of power, very little cabinet real estate.
There’s no fan to worry about. The HDR-30 uses free-air convection cooling, helping keep the design simple and maintenance-friendly.
It is specified for a working temperature range of -30°C to +70°C, with output derating applied as required at higher temperatures.
The HDR-30 includes built-in protection to help keep both the power supply and connected equipment better protected against abnormal operating conditions.
Overload protection uses constant-current limiting with automatic recovery once the fault condition is removed, while over-voltage protection shuts down the output and requires power to be reapplied for recovery.
Efficiency varies by output model, reaching up to 90% for the HDR-30-48, while the other models are rated at up to 82–89%.
The series also operates from a broad 85–264VAC input range, with operational capability extending to 277VAC, and supports 120–390VDC operational input.
The HDR-30's DIN-rail format makes it particularly convenient wherever compact power conversion needs to sit neatly alongside other equipment on a standard DIN rail.
With its ultra-slim profile, free-air cooling and broad output-voltage selection, it keeps installation simple while leaving more room for the rest of your system.
Ready for a wide range of applications
The datasheet positions the HDR-30 as a DIN-rail power supply, with its compact design intended for integration into equipment and electrical control environments. Its combination of multiple output voltages, DIN-rail mounting, fanless cooling and wide input range makes it a flexible option wherever compact DC power is required.
