XT3006 LED Profile
XT3006
All X-Trusion Profiles can be used as independent lighting sources for practical projects, or to complement lighting designs. We offer any length of Extrusion between 0.5M and 3M meaning that custom lengths between these sizes are fully achievable.
Download Our Data Sheet
A sleek profile designed to blend into the surface

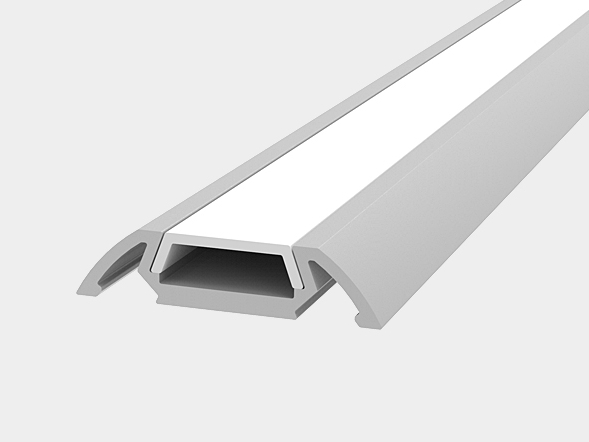

The XT3006 X-Trusion LED profile is a stylish aluminium extrusion designed for wall-mounted LED lighting. Measuring approximately 29.96 × 7mm, its distinctive curved outer design creates a neat, streamlined finish around the lighting.
With a 13mm lighting source width, the XT3006 provides a practical housing for LED lighting while keeping the overall profile slim and visually unobtrusive.
What features does it have?
- Approximately 29.96 × 7mm aluminium LED extrusion
- Designed for wall-mounted installation
- Suitable for a 13mm-wide lighting source
- Available in Black, Silver and White
- Anodised or painted surface options
- Polycarbonate cover measuring 13.2 × 4mm
- Choice of Diffused, Transparent or Opal cover
- Polycarbonate end caps available in Grey, White and Silver
- End caps available with or without a hole
- Stainless-steel mounting clips
- Custom lengths available from 0.5m to 3m
- IP20 rated
- 3-year warranty
- CE certified
- RoHS compliant
Built For Creative Lighting Projects
Flexible lengths for every project
X-Trusion profiles are available in any length between 0.5m and 3m, with custom lengths within this range fully achievable.
This makes it easy to specify the profile to the dimensions of your project, whether you're working on a short feature or a longer run of integrated LED lighting.
Slim profile, versatile applications
With its 29.96 × 7mm aluminium construction and 13mm lighting source width, the XT3006 offers a balance of practical lighting space and a discreet overall profile.
The curved outer design gives the extrusion a more refined appearance, making it suitable for installations where both the lighting and the profile need to complement the surrounding design.
A clean finishing touch for your lighting design
The XT3006 combines a slim aluminium profile with a distinctive curved design, creating a neat way to integrate LED lighting into wall-mounted applications.
With a 13mm lighting source width, multiple cover and colour options, and custom lengths from 0.5m to 3m, the XT3006 gives you the flexibility to create a professional-looking lighting solution tailored to your project.
Take a Look at Our Previous Projects
