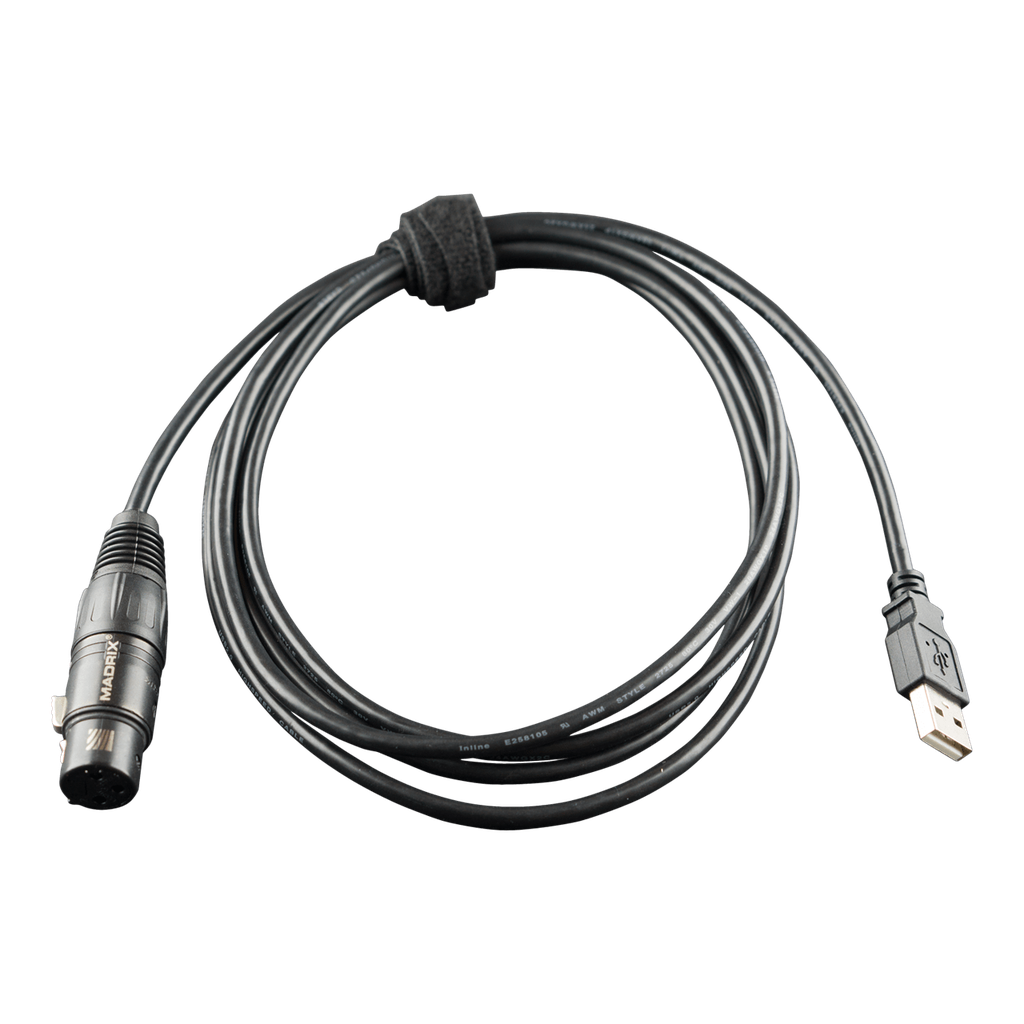

MADRIX® USB SMPTE
Package Contents:
- 1x MADRIX USB SMPTE
- 1x Technical manual / quick start guide
Product Information
One of the smallest USB interfaces for DMX output or input.
DC 5 V, 500 mA, Power over USB
~ 50 mA during normal operation
3-pin, XLR, female, NEUTRIK
1x port, USB 2.0, type-A male plug, 2m cable
110g
(Operating) 10 °C to 50 °C (Storage) -10 °C to 70 °C
5 % to 80 %, non-condensing (Operating / Storage)
IP20
CE, EAC, RoHS
5 years
Power supply
Power consumption
Plug
USB
Weight
Temperature
Relative Humidity
IP Rating
Certificates
Warranty
MADRIX I/O products are supplementary input and output devices. External equipment brings additional automation processes and interaction to any LED project using MADRIX 5.
Data is received via the 3-pin, female XLR connector. The device can simply be connected to any USB 2.0 port.
This input allows you to effortlessly use SMPTE time code for time synchronization across your equipment and multiple devices.
Synchronize the automated playback of scenes and effects in MADRIX 5 by using the Cue List.
