MADRIX® LUNA
3 versions are available:

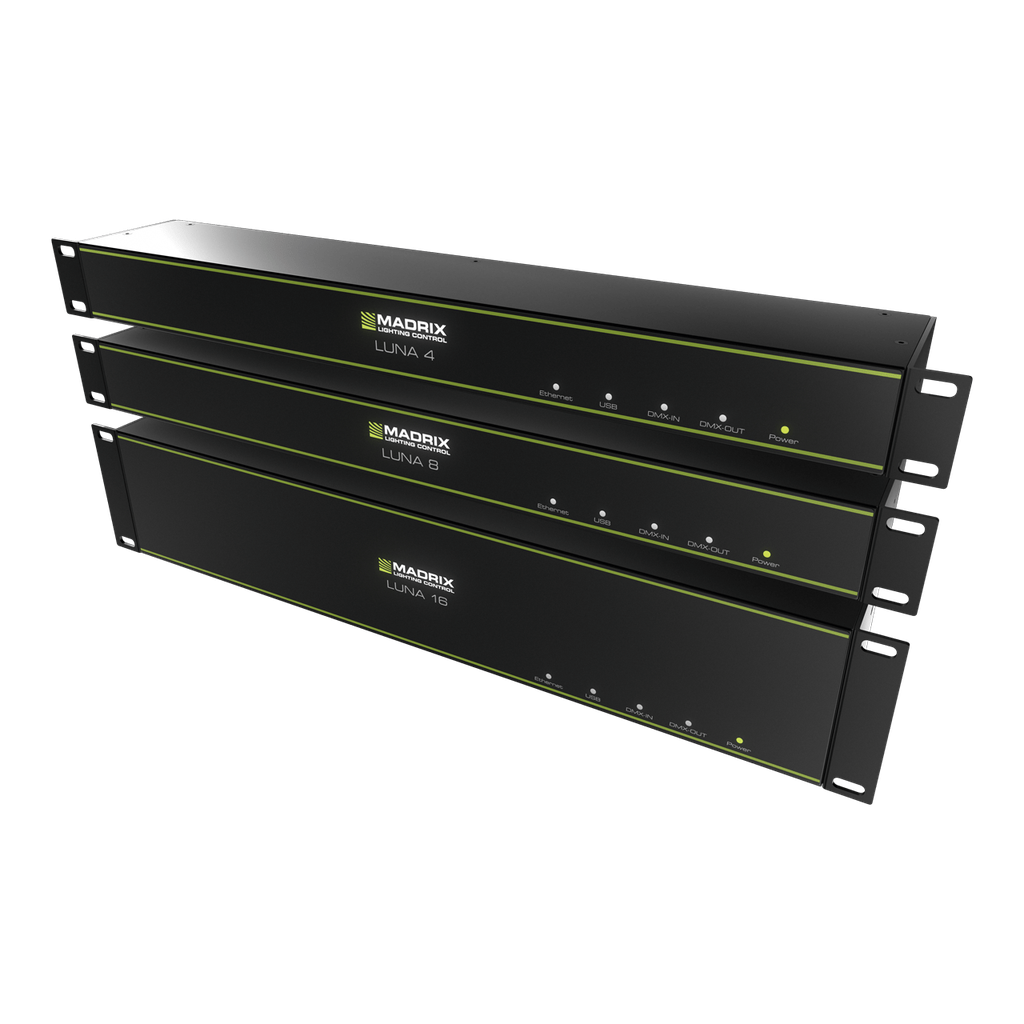

LUNA 4 | LUNA 8 | LUNA 16
Package Contents:
Prices are Ex VAT
Documents
Product Information
As a receiving unit, the 100 MBit/s RJ45 Ethernet connection is more than enough. In our FAQs and especially for large projects, we recommend to use Art-Net and 1 GBit/s for the network switch and network card. For the sender of all the data, the higher bandwidth is required.
Often, Art-Net data is sent in broadcast mode where all receivers get all the data. With MADRIX 5 however, we also support unicast mode to just sent the required data to each single unit to save bandwidth.
In all cases, MADRIX LUNA provides the performance you need.

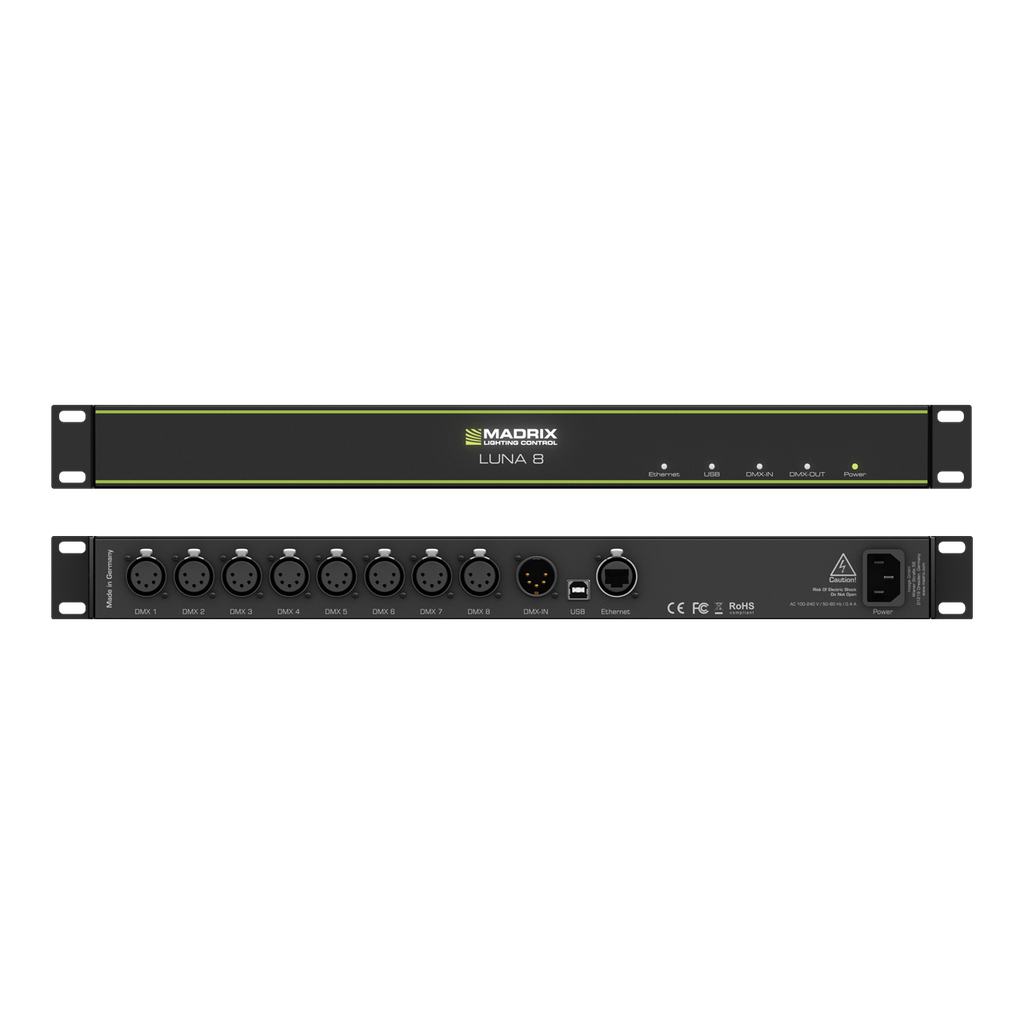

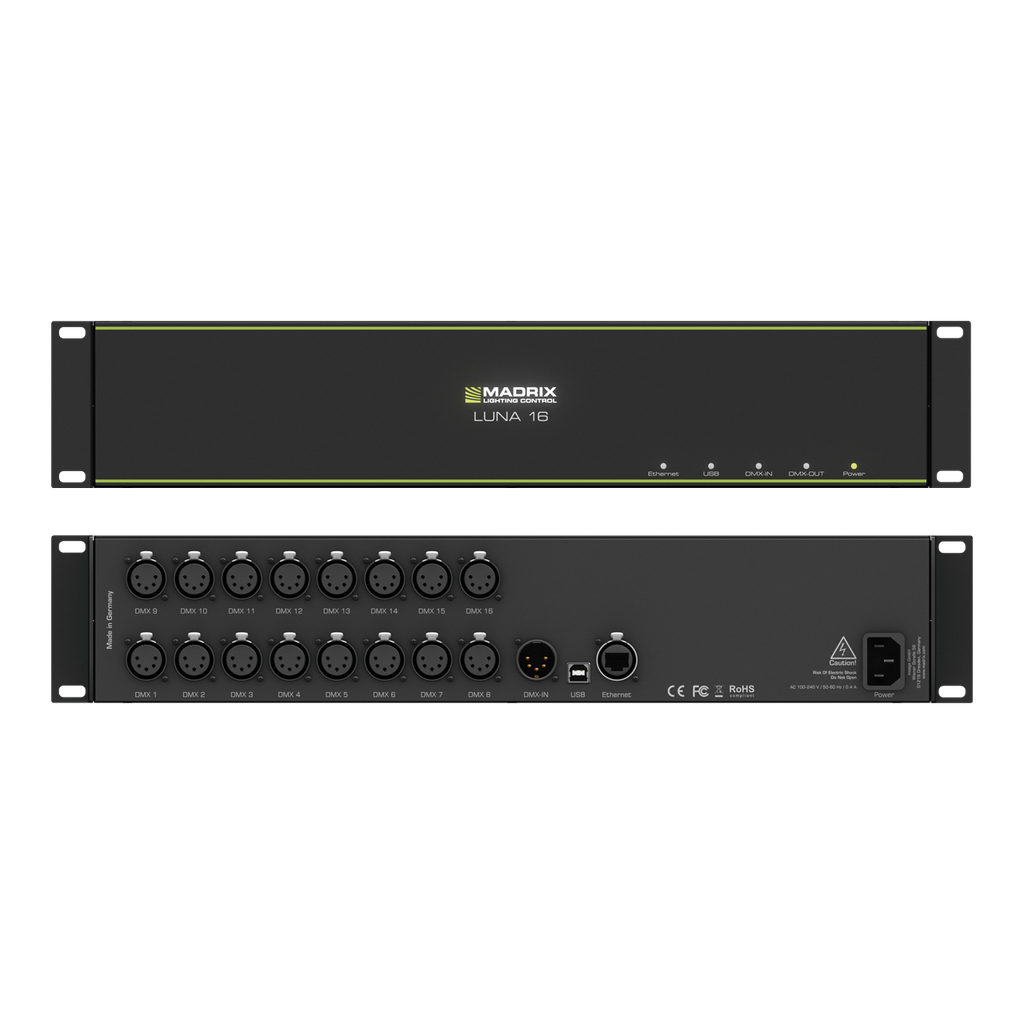

4, 8, or 16 XLR ports (5-pin, female) distribute the equal number of DMX universes per unit. 1 XLR port (5-pin, male) can be used for DMX input. Simply use several units at the same time for larger projects.
Art-Net or Streaming ACN data is directly converted to DMX512. Optimize and decentralize cabling to cover any distance to the device using Ethernet network.
The device is ready within seconds after startup. HTP merging is automatically available for two Ethernet sources. Its firmware is upgradable for future enhancements. Access and change specific device settings using the built-in web configuration page.
MADRIX LUNA offers powerful features, especially in combination with MADRIX 5. Take full advantage of pixel mapping and voxel mapping. The installation of the device is still quick and easy.

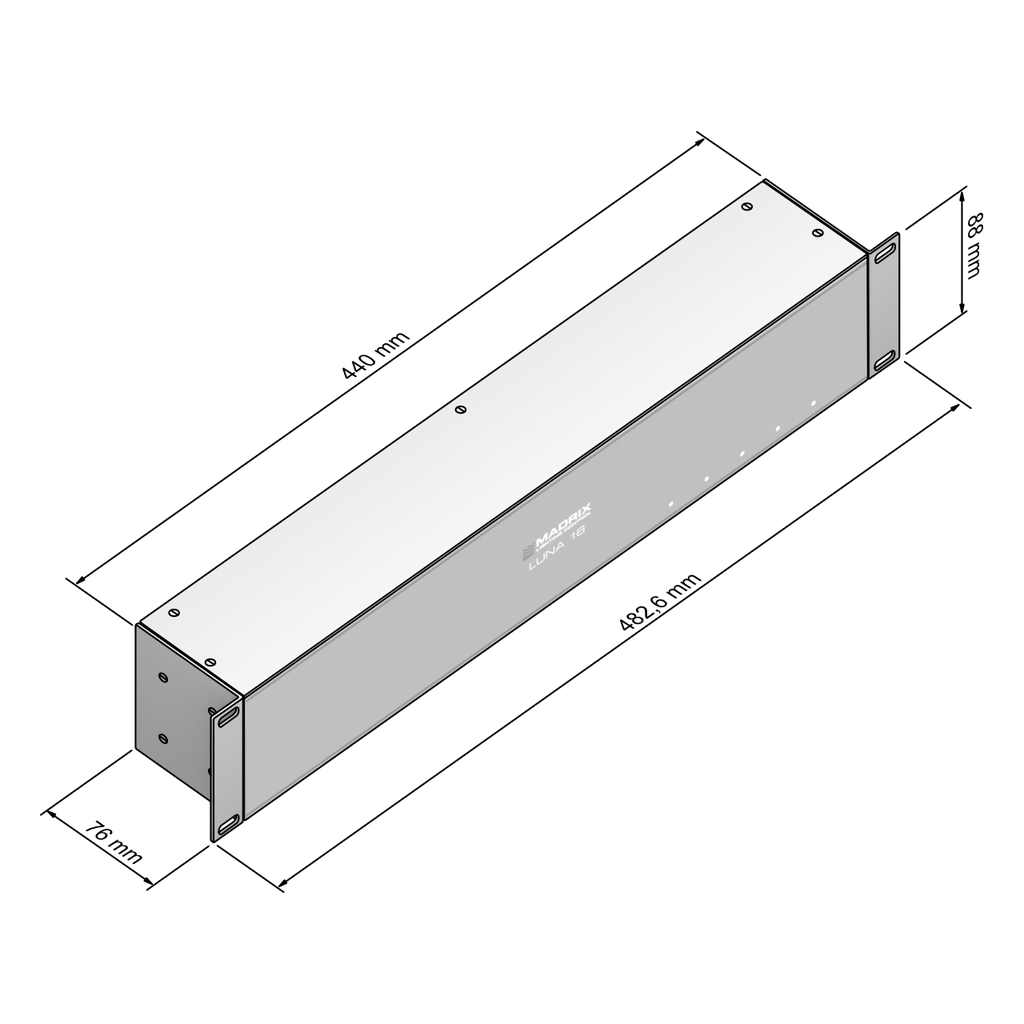

Devices are built 19″ x 1U or 19″ x 2U. They feature a fanless, noiseless, low-energy design, a durable metal case, and NEUTRIK plugs. 2 premounted brackets make rack mounting possible. 5 indicators quickly show the status of a device.
MADRIX 5 and MADRIX hardware allow you to fully synchronize Art-Net data for all output ports and even across multiple devices to get an optimal image on the LEDs without visual interruptions.d brackets make rack mounting possible. 5 indicators quickly show the status of a device.
MADRIX LUNA complies with the official protocol specifications and can be used as a regular node with your other consoles, controllers, or software solutions.
MADRIX LUNA
The MADRIX LUNA reliably distributes DMX512 data over long or short distances using Ethernet network or USB. Its sync mode makes sure that lighting effects look their best on the LEDs.
