MADRIX® RADAR fusion
Management. Manage all of your devices the remote way. Manage them the smart way.
Everywhere, lighting designs beautifully light up the world all around us. And clients expect them to do so without failure, each and every day. Behind the scenes, the lighting industry faces the complex aspects of modern technologies. Increasingly large projects become increasingly difficult to manage and maintain.
- 1x empty MADRIX Key
- 1x USB flash drive incl. MADRIX 5 Software and /MADRIX RADAR Software
- 1x Lanyard
- 1x Quick start guide
Prices are Ex VAT
Documents
Product Information
Easily set up your RDM devices remotely. This means you can perform any configuration conveniently from your computer; instead of requiring direct access to the devices themselves in the truss, in the ceiling, or on the facade.
Avoid the complicated procedure to manually set up all of a project‘s lighting fixtures by hand before they can be mounted. Freely modify their settings, such as the important DMX start address, after any installation has taken place.
Drastically reduce the time-consuming process of configuring a large number of devices. Use the built-in search function and change settings of a single device or select several entries to quickly make multiple changes at once.
Let the software automatically patch all fixtures in a single DMX universe or across the entire range of addresses. Simply use drag and drop to put them in the correct order. Setting up DMX addresses has never been faster.
Use the built-in highlight mode to let a fixture flash with full-on white for quick identification of fixtures in your installation. See if a device correctly responds to DMX commands or if the lighting fixtures are addressed correctly in a row.
MADRIX RADAR supports all RDM parameters detailed in the official protocol specifications of ANSI E1.20 and ANSI E1.37-1 over Art-Net (including the ArtRdm package). All fixed parameters (PIDs for Set and Get) and manufacturer-specific parameters are included.
MADRIX RADAR
MADRIX RADAR is an independent software that allows you to choose compatible RDM nodes.
Monitoring. Fully automatic 24/7 device monitoring with automatic notifications.
Monitoring. Fully automatic 24/7 device monitoring with automatic notifications.
Automatic Notifications
If MADRIX RADAR detects any irregularities, you can receive automatic status updates within the software, run a PowerShell script, or let the system conveniently send you e-mails. In short, you are always up to date.
Making Sensor Data Understandable

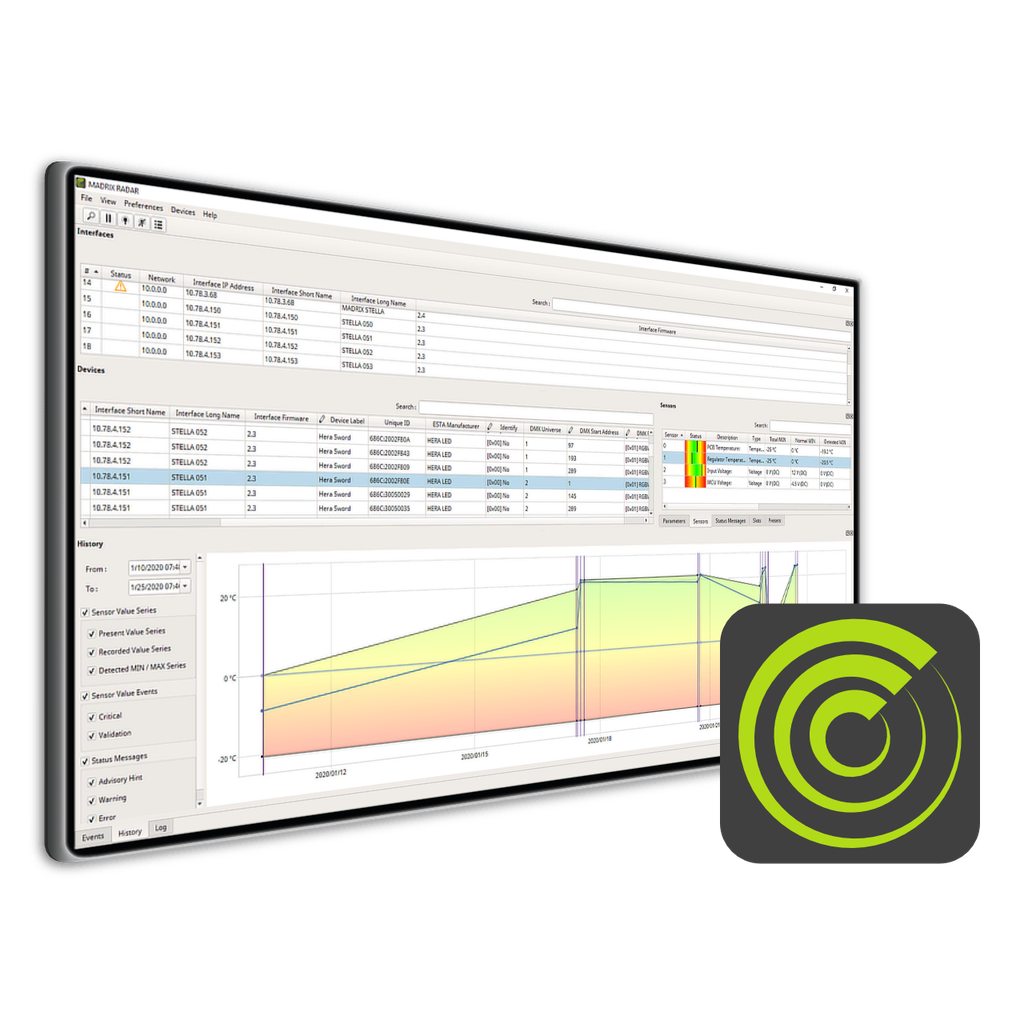

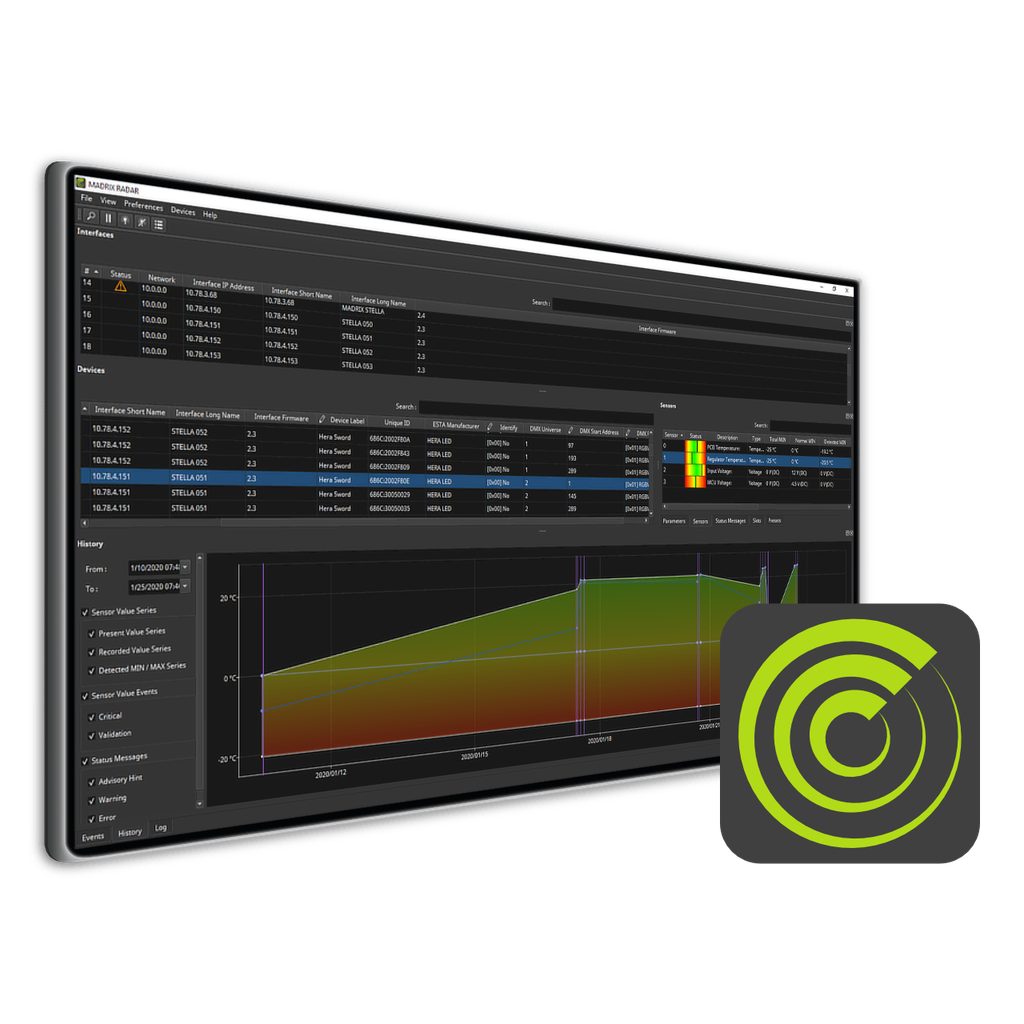

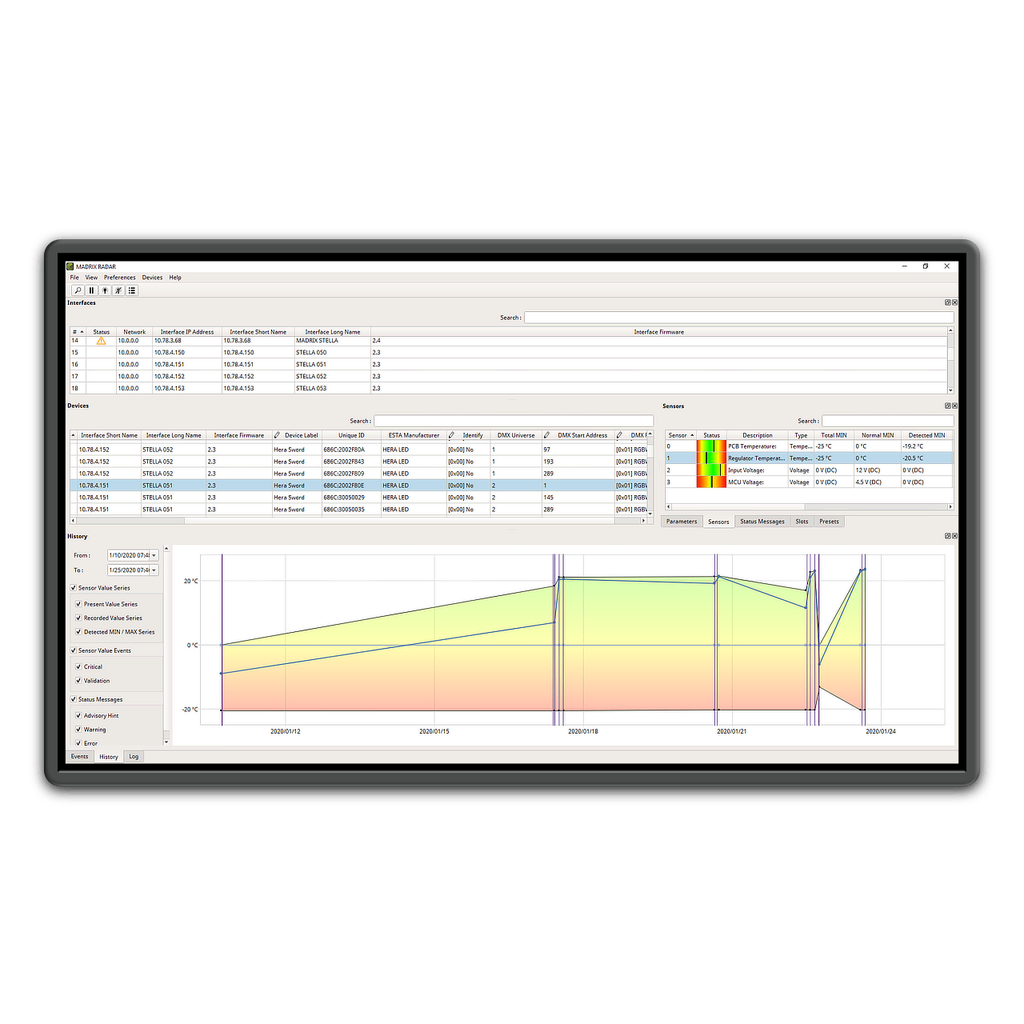

MADRIX RADAR checks the status of devices, such as voltage, temperature, status, power cycle, life cycle, and more. Graphical overviews allow you to quickly see if a sensor value is within its specified limits or out of its valid range.
Event Reports
In addition to merely requesting and receiving information, the software will apply its' own logical routines in order to create events for you. By probing and validating incoming data, MADRIX RADAR provides actionable reports for you.
Continuous Monitoring
Let the software monitor all of your devices 365 days a year, 7 days a week, 24 hours a day. It does so, fully automatically without any required supervision. This simply wasn't possible before.
